Structural · S-TNQRJ

Steel Beam to Column Shear Tab Connection Details

Materials

Steel

Elements

Columns Connections / Plates

Connections

Bolted Connection

About this detail

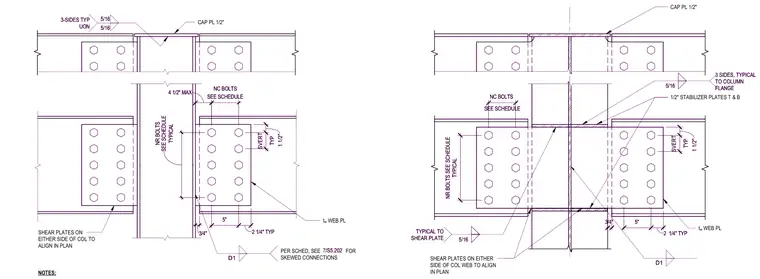

Steel beams connect to column webs and flanges using shear plates located on either side of the column web to align in plan. A half-inch cap plate is welded to the top with five-sixteenths inch fillet welds on three sides, typically. One-half inch top and bottom stabilizer plates provide additional reinforcement. Bearing connections utilize specified NC and NR bolts per schedule, with typical vertical spacings of one and a half inches and five inches. Skewed connections are detailed per sheet reference S5.202.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
