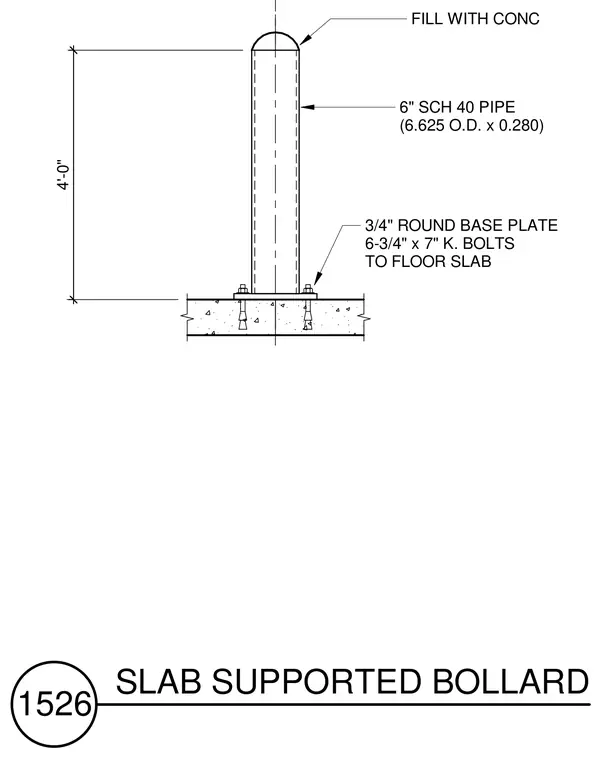

A six-inch Schedule 40 steel pipe with a 6.625-inch outer diameter and 0.280-inch wall thickness stands at a height of four feet and is filled with concrete. The pipe is welded to a three-quarter-inch round base plate secured to the structural floor slab using anchor bolts. The interior of the pipe is filled solid with concrete.
4'-0" 3/4" ROUND BASE PLATE 6-3/4" x 7" K. BOLTS TO FLOOR SLAB 6" SCH 40 PIPE (6.625 O.D. x 0.280) FILL WITH CONC 1526 SLAB SUPPORTED BOLLARD
