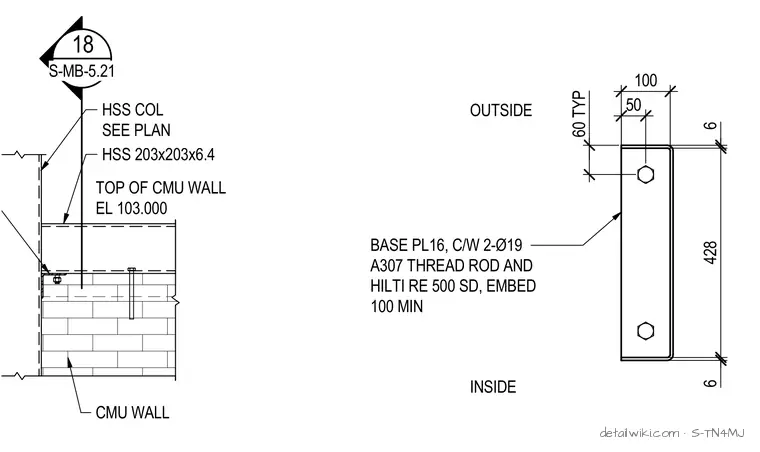

The assembly illustrates an HSS column bearing on top of a concrete masonry unit (CMU) wall at elevation 103.000. A base plate (BASE PL16) is secured using two diameter 19 mm A307 threaded rods anchored with Hilti RE 500 SD epoxy with a minimum embedment of 100 mm. Dimensional annotations indicate a 428 mm plate height and 100 mm plate width with 50 mm bolt spacing.
Text on the drawing
TOP OF CMU WALL EL 103.000 HSS 203x203x6.4 HSS COL SEE PLAN CMU WALL 18 S-MB-5.21 BASE PL16, C/W 2-Ø19 A307 THREAD ROD AND HILTI RE 500 SD, EMBED 100 MIN OUTSIDE INSIDE 6 428 6 100 60 TYP 50
