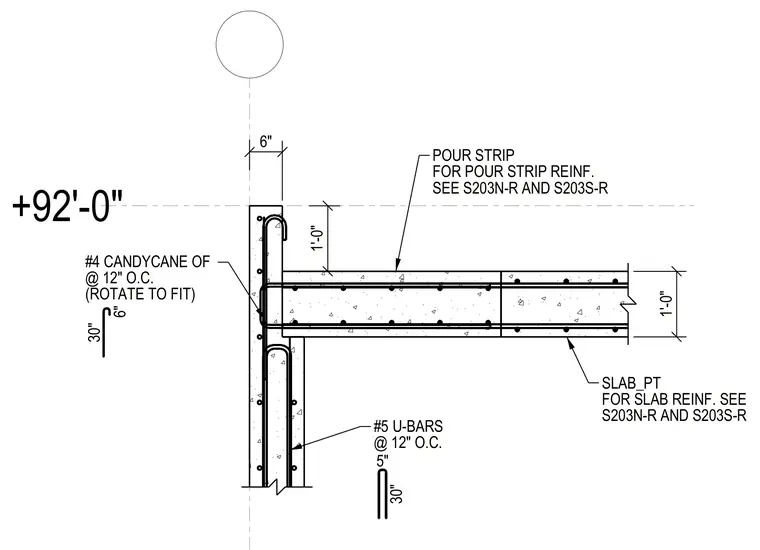

A concrete slab edge and pour strip frame into a full-height concrete wall at elevation plus ninety-two feet. The post-tensioned concrete slab features a one-foot thickness and is reinforced with #4 candycane bars spaced at twelve inches on center, rotated to fit. A pour strip is integrated between the slab and wall, with reinforcement detailed on separate structural sheets. Vertical wall continuity and connection are maintained using #5 U-bars spaced at twelve inches on center.
+92'-0" 6" 1'-0" POUR STRIP FOR POUR STRIP REINF. SEE S203N-R AND S203S-R SLAB_PT FOR SLAB REINF. SEE S203N-R AND S203S-R #5 U-BARS @ 12" O.C. 30" 5" #4 CANDYCANE OF @ 12" O.C. (ROTATE TO FIT) 6" 30" 1'-0"
