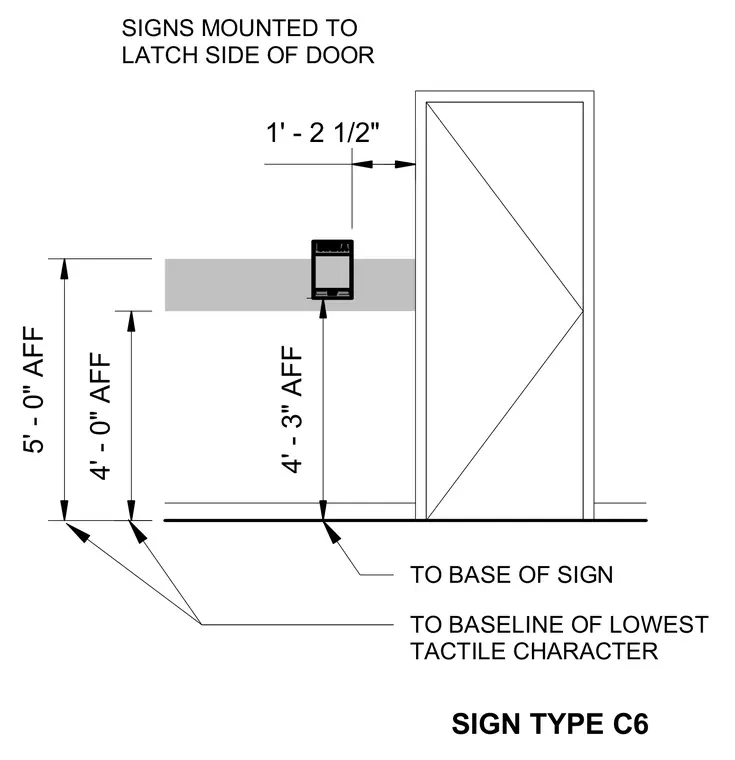

Sign type C6 is mounted on the latch side of the door. The horizontal clearance from the edge of the door frame to the sign is one foot two and one-half inches. The base of the sign is positioned four feet three inches above the finished floor. The baseline of the lowest tactile character is set between four feet and five feet above the finished floor.
1' - 2 1/2" 4' - 0" AFF 5' - 0" AFF SIGNS MOUNTED TO LATCH SIDE OF DOOR TO BASE OF SIGN TO BASELINE OF LOWEST TACTILE CHARACTER SIGN TYPE C6 4' - 3" AFF
