Structural · S-TMPEV

Concrete Tilt-Up Wall Panel Reinforcement and Curtain Details

Materials

Elements

About this detail

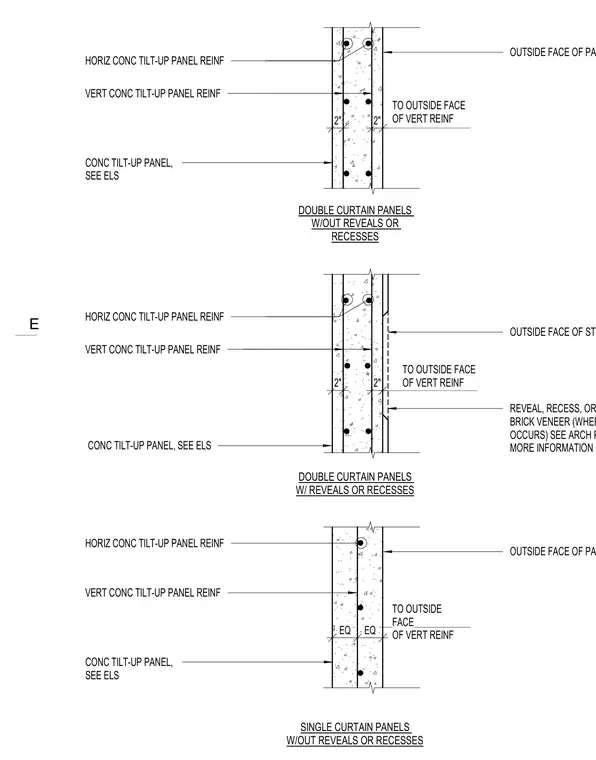

Concrete tilt-up wall panels feature horizontal and vertical concrete reinforcing bars spaced within the concrete matrix at specified clearances. Single and double curtain panels are detailed with and without architectural reveals, recesses, or brick veneer locations. Vertical reinforcement is positioned relative to the outside face of the panel with equal spacing or two-inch clear dimensions. Wall panel dimensions and configurations are coordinated with architectural elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
