Concrete Curb Corner and End Reinforcing Details

Materials

Concrete

Elements

Arches Site / Paving Reinforcing

Connections

Rebar Splice / Development

About this detail

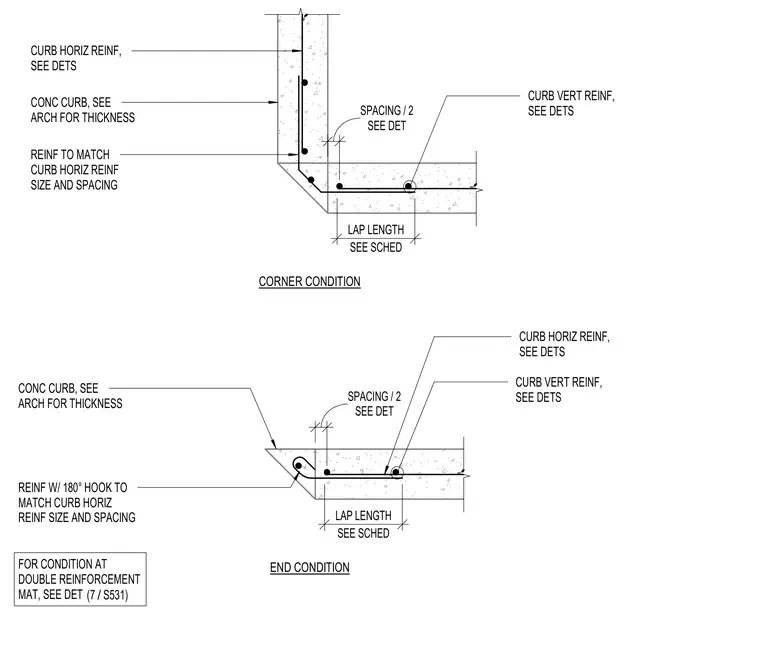

Horizontal and vertical reinforcing bars are detailed for concrete curb corners and end conditions per architectural thickness requirements. The corner condition features horizontal reinforcement matched in size and spacing with one hundred eighty degree hooks. Spacing and lap length requirements are coordinated with schedules and referenced details.
