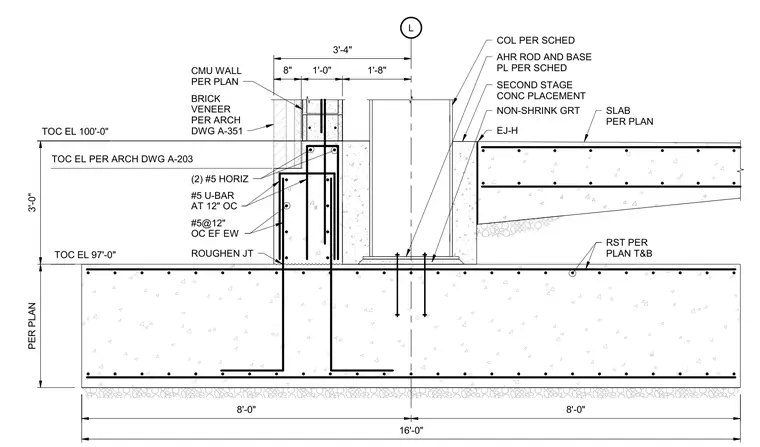

A structural column sits on an anchor rod and base plate assembly embedded in second-stage concrete placement over a continuous concrete foundation. The foundation features number 5 reinforcing bars at twelve inches on center each way, top and bottom, with a roughened construction joint at the stem wall. A concrete masonry unit wall with brick veneer and vertical number 5 U-bars at twelve inches on center bears adjacent to the column, separated by an expansion joint. A concrete slab connects to the assembly with non-shrink grout and reinforcing steel sized per plan.
L PER PLAN 3'-0" 3'-4" 8" 1'-0" 1'-8" BRICK VENEER PER ARCH DWG A-351 #5 U-BAR AT 12" OC TOC EL 100'-0" 8'-0" 8'-0" 16'-0" CMU WALL PER PLAN COL PER SCHED SECOND STAGE CONC PLACEMENT AHR ROD AND BASE PL PER SCHED NON-SHRINK GRT SLAB PER PLAN EJ-H ROUGHEN JT #5@12" OC EF EW #5@12" OC EF EW RST PER PLAN T&B RST PER PLAN T&B (2) #5 HORIZ TOC EL 97'-0" TOC EL PER ARCH DWG A-203
