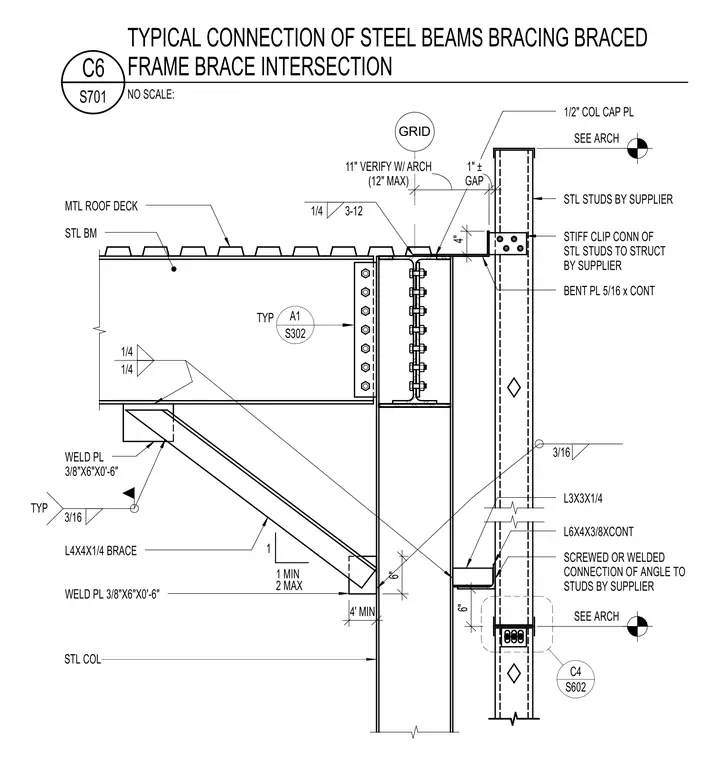

A structural steel column supports a steel beam framing into a metal roof deck with a one-inch gap maintained at the perimeter. A braced frame brace consisting of an L4x4x1/4 angle connects via three-eighths-inch thick by six-inch by zero-foot-six-inch weld plates. Steel studs attach to the structural framing using a stiff clip connection furnished by the supplier, supplemented by continuous bent plates and continuous L6x4x3/8 angles. Fillet welds of varying sizes secure the gusset plates and connection clips as indicated by the weld symbols.
STL COL MTL ROOF DECK 1/4 3-12 A1 S302 TYP BENT PL 5/16 x CONT 1/2" COL CAP PL 4" GRID (12" MAX) 11" VERIFY W/ ARCH GAP 1" ± SEE ARCH SEE ARCH 6" 6" S602 C4 STL STUDS BY SUPPLIER STIFF CLIP CONN OF STL STUDS TO STRUCT BY SUPPLIER L4X4X1/4 BRACE WELD PL 3/8"X6"X0'-6" WELD PL 3/8"X6"X0'-6" 1 1 MIN 2 MAX L6X4X3/8XCONT L3X3X1/4 SCREWED OR WELDED CONNECTION OF ANGLE TO STUDS BY SUPPLIER 1/4 1/4 3/16 STL BM 4' MIN TYP 3/16 NO SCALE: S701 C6 TYPICAL CONNECTION OF STEEL BEAMS BRACING BRACED FRAME BRACE INTERSECTION
