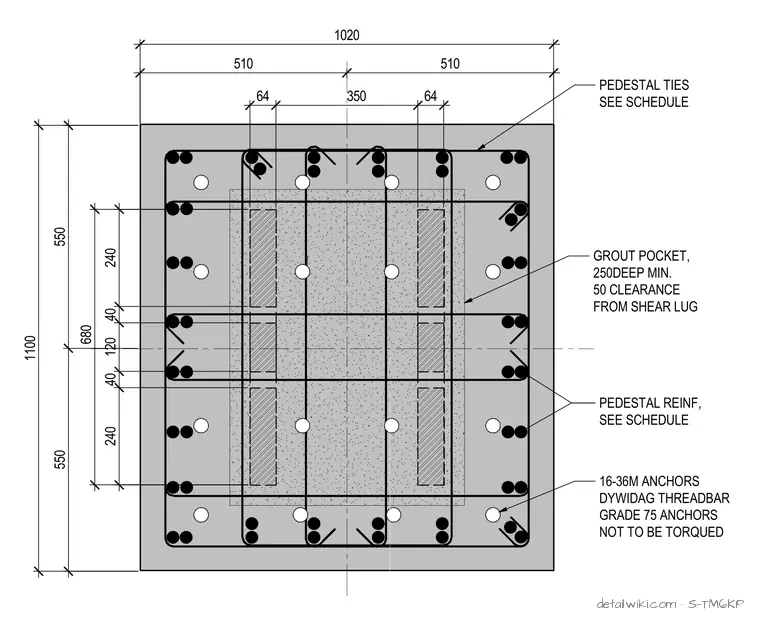

The detail illustrates a reinforced concrete pedestal measuring 1100 by 1020 mm containing vertical pedestal reinforcement, pedestal ties, and multiple anchor locations. Specifically, it shows sixteen 36M Dywidag threadbar Grade 75 anchors not to be torqued, along with internal grout pockets with a minimum depth of 250 and specific clearances from shear lugs. Dimensions and spacings are clearly mapped out across the cross-section.
Text on the drawing
1100 1020 510 510 550 550 PEDESTAL TIES SEE SCHEDULE PEDESTAL REINF, SEE SCHEDULE 240 40 120 40 240 680 64 350 64 GROUT POCKET, 250DEEP MIN. 50 CLEARANCE FROM SHEAR LUG 16-36M ANCHORS DYWIDAG THREADBAR GRADE 75 ANCHORS NOT TO BE TORQUED
