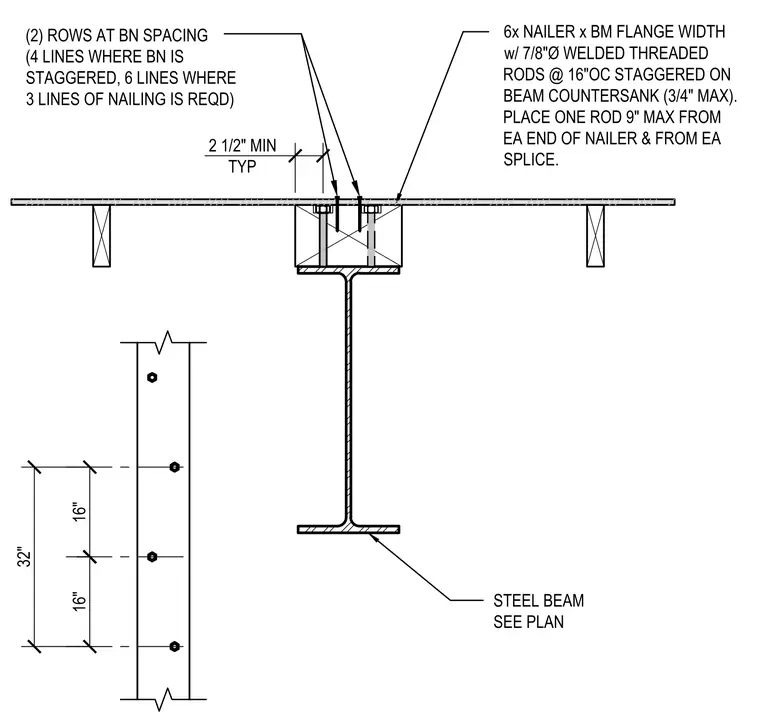

A wood nailer is fastened to the top flange of a steel beam using seven-eighths inch diameter welded threaded rods spaced at sixteen inches on center. The rods are staggered across the beam flange and countersunk into the wood nailer to a maximum depth of three-quarters of an inch. One rod is placed within nine inches of each end of the nailer and each splice. The nailer width matches the beam flange width, with a minimum two and one-half inch typical spacing for the nailing rows. The nailing pattern varies between two, four, or six lines depending on the required spacing.
Text on the drawing
6x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 2 1/2" MIN TYP
