A metal roof deck bears on a joist girder framing into a concrete tilt-up wall. The concrete wall contains horizontal panel reinforcement including one continuous number five bar at the joist bearing elevation. Bridging and connections to the joists are provided by the joist supplier. The bridging attachment consists of a three-by-three-by-quarter-inch angle sized to joist depth and secured with two three-quarter-inch diameter by five-inch Kwik Hus-EZ anchors or equal. Per Steel Joist Institute requirements, the bottom horizontal bridging is installed horizontally without kicking up at a diagonal towards the deck bearing. A three-sixteenths-inch fillet weld is specified at the connection as shown.

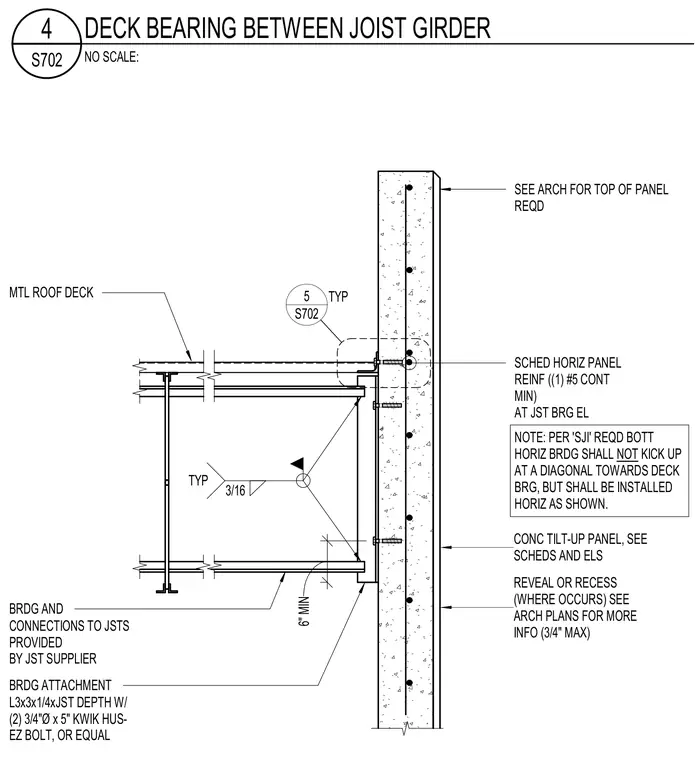

SEE ARCH FOR TOP OF PANEL REQD SCHED HORIZ PANEL REINF ((1) #5 CONT MIN) AT JST BRG EL MTL ROOF DECK BRDG AND CONNECTIONS TO JSTS PROVIDED BY JST SUPPLIER BRDG ATTACHMENT L3x3x1/4xJST DEPTH W/ (2) 3/4"Ø x 5" KWIK HUS- EZ BOLT, OR EQUAL TYP 3/16 NOTE: PER 'SJI' REQD BOTT HORIZ BRDG SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG, BUT SHALL BE INSTALLED HORIZ AS SHOWN. CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) S702 5 TYP 6" MIN NO SCALE: S702 4 DECK BEARING BETWEEN JOIST GIRDER
