Typical Anchor Bolt Details

Materials

Steel

Elements

Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

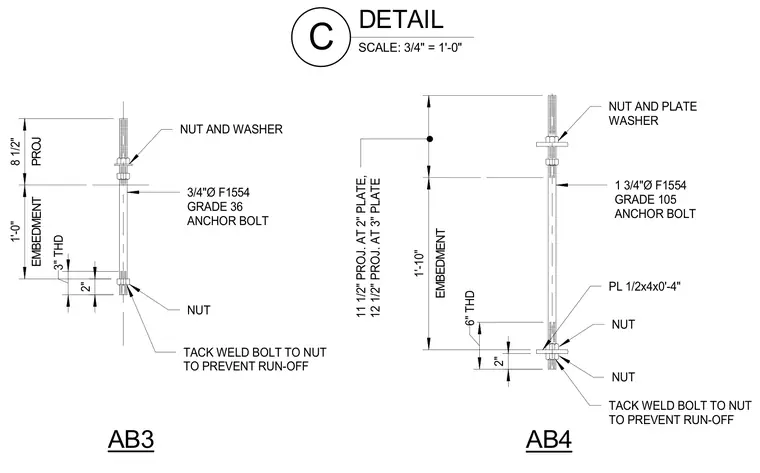

These typical structural details illustrate ASTM F1554 anchor bolt assemblies with embedded anchorage components. Anchor bolt AB3 consists of a 3/4-inch diameter Grade 36 anchor rod featuring a 1'-0" embedment depth, a 3-inch threaded bottom section with a nut tack-welded to prevent run-off, an 8 1/2-inch top projection, and standard nuts and washers. Anchor bolt AB4 consists of a larger 1 3/4-inch diameter Grade 105 anchor rod featuring a 1'-10" embedment depth, a 6-inch threaded bottom section, a 1/2-inch by 4-inch by 4-inch anchor plate secured between double nuts with tack-welded connections, and an 11 1/2-inch projection at a 2-inch plate or 12 1/2-inch projection at a 3-inch plate.
