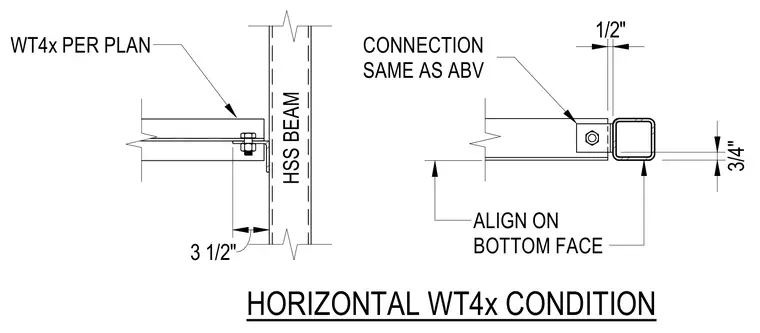

A WT4x shape specified per plan connects horizontally to a hollow structural section beam with a bolted arrangement matching the condition above. The horizontal WT4x aligns on the bottom face of the hollow structural section beam with a three-quarter-inch vertical offset and a half-inch setback. A three-and-a-half-inch dimension governs the connection placement relative to the structural member face.
HORIZONTAL WT4x CONDITION 1/2" HSS BEAM ALIGN ON BOTTOM FACE WT4x PER PLAN CONNECTION SAME AS ABV 3 1/2" 3/4"
