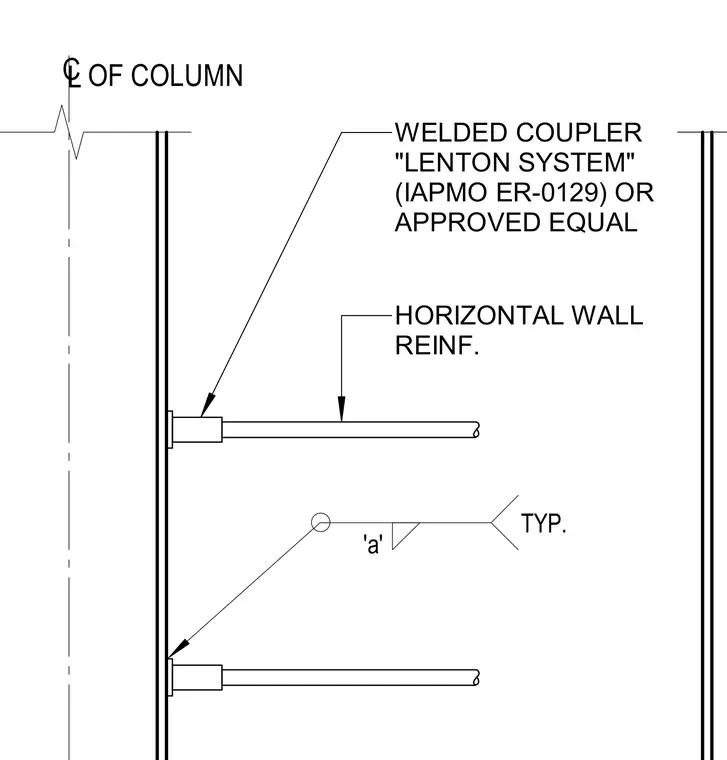

Horizontal wall reinforcement anchors to a steel column using a Lenton System welded coupler or approved equal. The mechanical couplers are welded directly to the column flange, aligning with horizontal rebar spacing designated as typical. A centerline of column reference establishes the layout position for the wall reinforcement.
WELDED COUPLER "LENTON SYSTEM" (IAPMO ER-0129) OR APPROVED EQUAL HORIZONTAL WALL REINF. 'a' TYP. CL OF COLUMN
