Demolition of the existing concrete-encased steel framing and associated portions of the concrete slab. Sections of the existing steel collector members are designated for removal. The concrete encasement around the steel framing is broken out and removed as part of the structural modification.

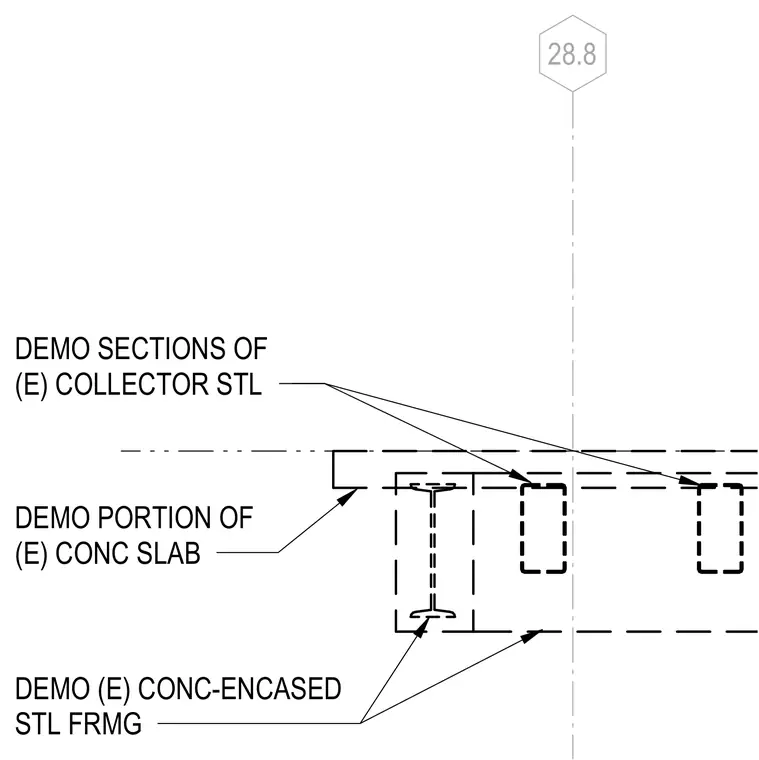

28.8 DEMO SECTIONS OF (E) COLLECTOR STL DEMO PORTION OF (E) CONC SLAB DEMO (E) CONC-ENCASED STL FRMG
