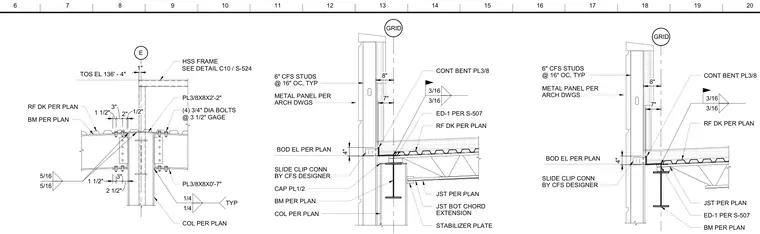

An HSS column supports a structural steel beam and roof deck, framed with a half-inch cap plate and three-eighths-inch connection plates secured by four three-quarter-inch diameter bolts at a three-and-a-half-inch gage. Cold-formed steel studs at sixteen inches on center carry metal panels per architectural drawings, tied back with continuous bent plates and slide clip connections designed by the cold-formed steel specialist. A roof joist with a bottom chord extension and stabilizer plate bears on the structural steel framing at the designated top of steel elevation.
3/16 3/16 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS JST PER PLAN BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY CFS DESIGNER GRID 4" 8" 7" BOD EL PER PLAN 132' - 0" ED-1 PER S-507 3/16 3/16 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS JST PER PLAN BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY CFS DESIGNER GRID 4" COL PER PLAN BOD EL PER PLAN 132' - 0" CAP PL1/2 JST BOT CHORD EXTENSION STABILIZER PLATE 8" 7" ED-1 PER S-507 E 1" 1 1/2" 3" 2" 1/2" 1 1/2" 3" 2 1/2" 1/4 1/4 TYP (4) 3/4" DIA BOLTS @ 3 1/2" GAGE PL3/8X8X2'-2" PL3/8X8X0'-7" 5/16 5/16 COL PER PLAN HSS FRAME SEE DETAIL C10 / S-524 TOS EL 136' - 4" BM PER PLAN RF DK PER PLAN 7 9 11 13 15 17 19 6 8 10 12 14 16 18 20
