Horizontal Brace Gusset Plate Connection at Wide Flange Beams

Elements

Connections

About this detail

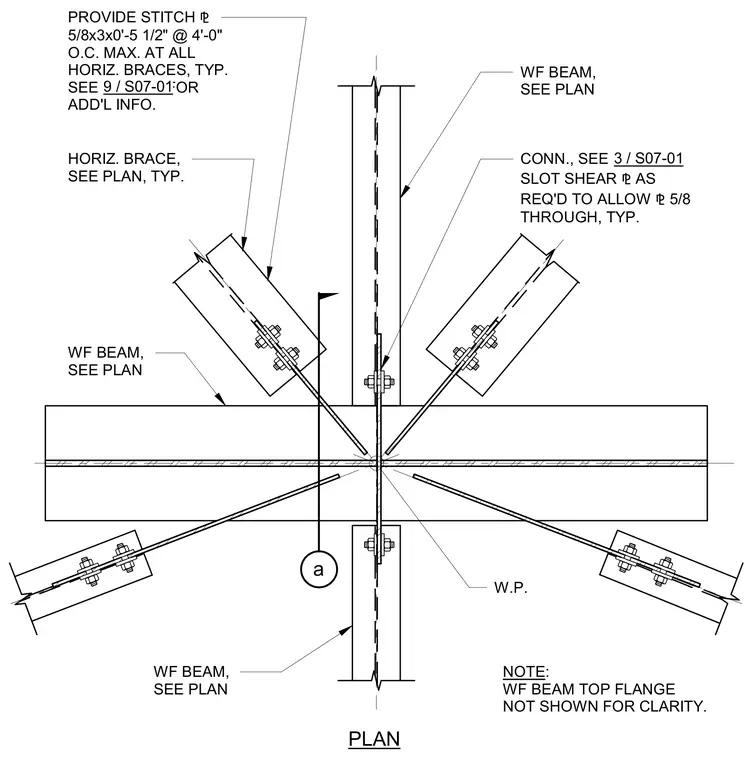

A horizontal bracing connection intersects wide flange beams at a common work point. The horizontal braces connect via bolted gusset plates, incorporating slotted shear plates as required to allow the five-eighths-inch plate to pass through. Five-eighths by three by five-and-a-half-inch stitch plates are provided at four feet zero inches on center maximum along all horizontal braces. The wide flange beam top flange is omitted for clarity.
