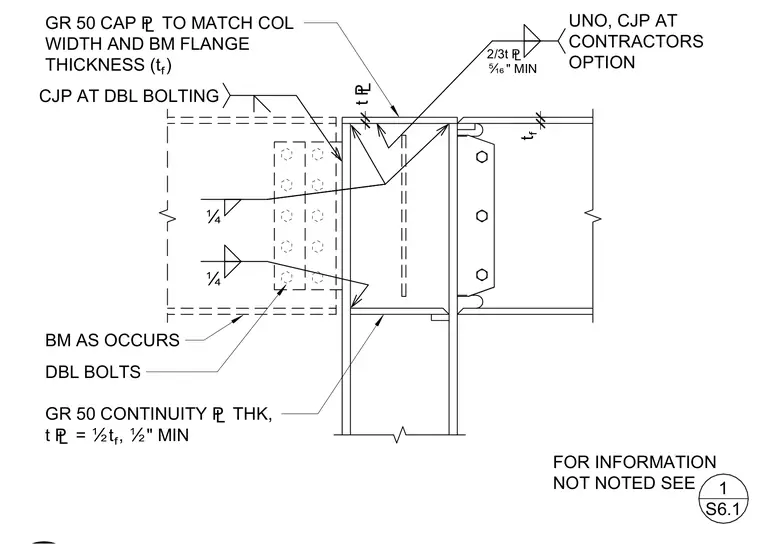

A steel beam frames into a structural column with a grade 50 cap plate matching the column width and beam flange thickness. Grade 50 continuity plates are provided with a thickness equal to half the beam flange thickness, with a one-half inch minimum. Complete joint penetration welds are specified at double bolting locations, with fillet welds indicated at the shear tab connection. Double bolts secure the beam web through a welded shear plate.
UNO, CJP AT CONTRACTORS OPTION 2/3t £ Ì" MIN GR 50 CAP £ TO MATCH COL WIDTH AND BM FLANGE THICKNESS (tô) tô CJP AT DBL BOLTING Ë Ë BM AS OCCURS DBL BOLTS FOR INFORMATION NOT NOTED SEE GR 50 CONTINUITY £ THK, t £ = Ïtô, Ï" MIN t £ 1 S6.1
