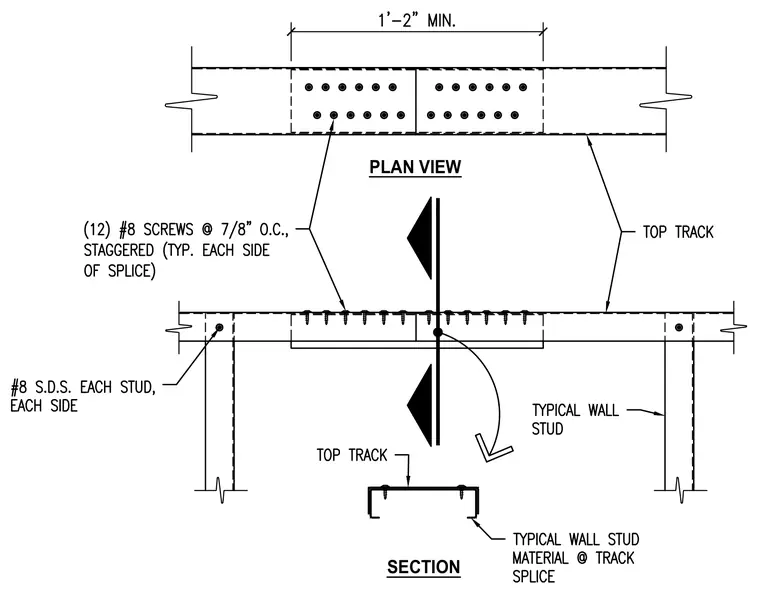

A top track splice for light-gauge steel framing with a minimum length of one foot two inches. Twelve number eight screws are installed at seven-eighths inch on center, staggered on each side of the splice. Number eight self-drilling screws secure each side of the typical wall stud.
