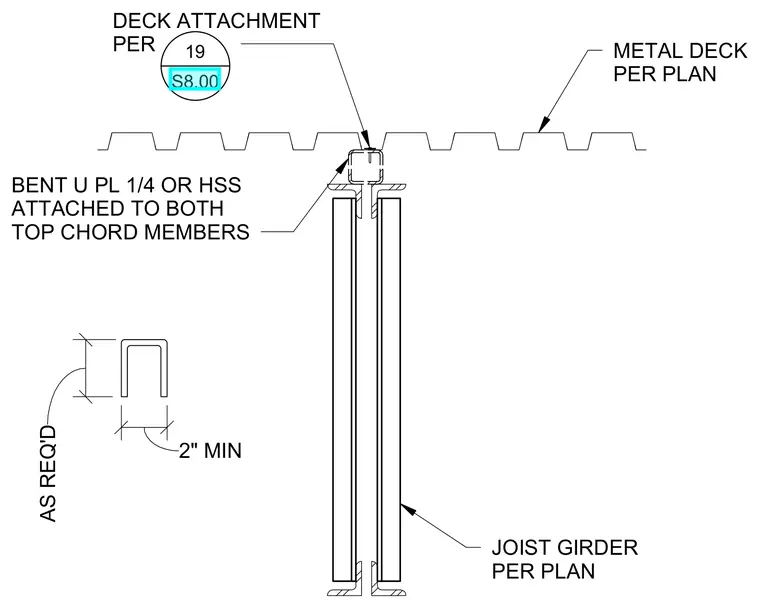

A bent one-quarter-inch U-plate or hollow structural section is attached to both top chord members of the joist girder as required. Metal deck bears directly on the U-plate or hollow structural section per structural plans. Deck attachment is executed according to project specifications with a two-inch minimum dimension.
BENT U PL 1/4 OR HSS ATTACHED TO BOTH TOP CHORD MEMBERS JOIST GIRDER PER PLAN METAL DECK PER PLAN DECK ATTACHMENT PER AS REQ'D 2" MIN 19 S8.00
