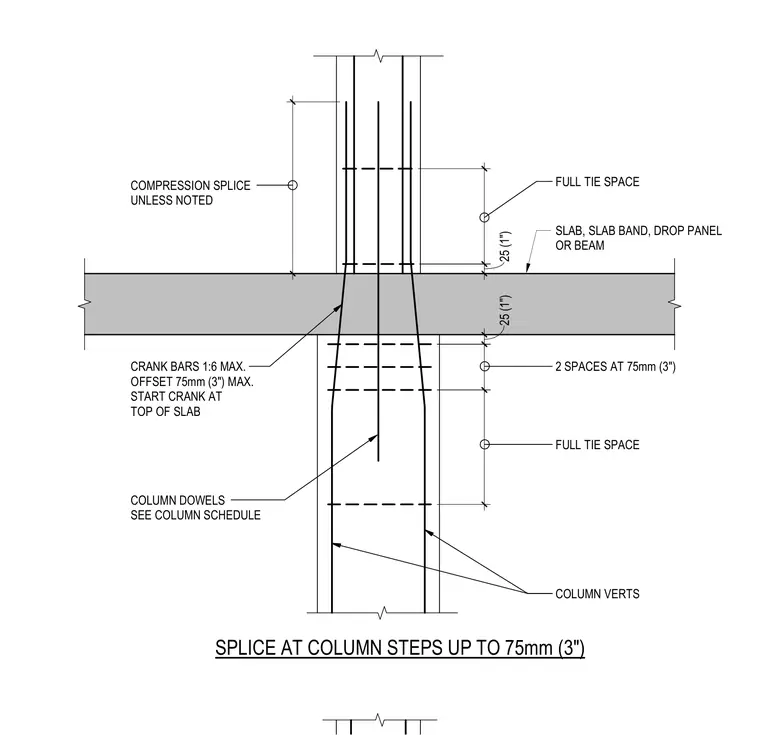

A column vertical bar compression splice with cranked bars occurs at a concrete floor slab transition. Vertical reinforcement bars transition through the slab thickness with a maximum offset ratio of one to six and a maximum offset of seventy-five millimeters. Full tie spacing is required twenty-five millimeters above and below the slab, with two additional spaces at seventy-five millimeters. Column dowels are sized per the column schedule and extend into the lower column.
250 25 (1") 25 (1") 120 30 FULL TIE SPACE SLAB, SLAB BAND, DROP PANEL OR BEAM 2 SPACES AT 75mm (3") FULL TIE SPACE COLUMN VERTS 450 COMPRESSION SPLICE UNLESS NOTED CRANK BARS 1:6 MAX. OFFSET 75mm (3") MAX. START CRANK AT TOP OF SLAB COLUMN DOWELS SEE COLUMN SCHEDULE SPLICE AT COLUMN STEPS UP TO 75mm (3")
