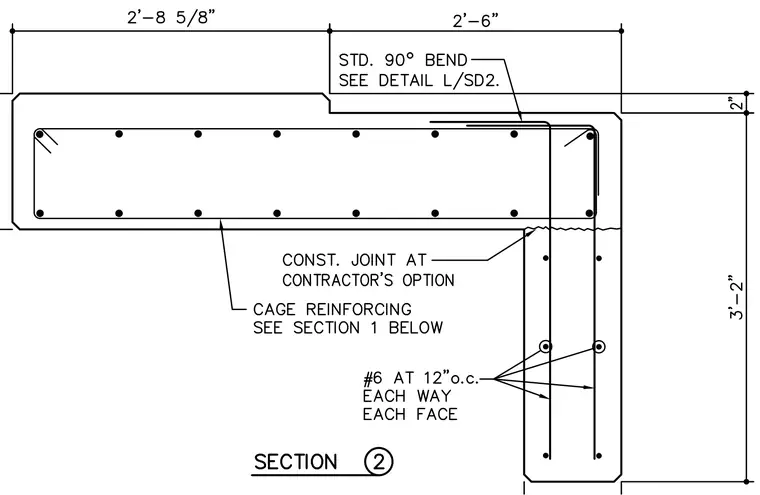

This structural detail shows a reinforced concrete beam framing into a vertical concrete wall with a construction joint located at the contractor's option. The horizontal beam features cage reinforcing detailed per section 1 below, with a standard ninety-degree bend at the corner extending per detail L over SD2. The vertical wall includes number 6 reinforcing bars spaced at twelve inches on center each way and each face.
