Structural · S-TJHX8

Buckling-Restrained Brace Connection at Column Pile Cap

Materials

Concrete Steel Masonry / CMU

Elements

Foundations / Footings Bracing Anchors / Embeds Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Embed Plate Timber / Mass-Timber Connection

About this detail

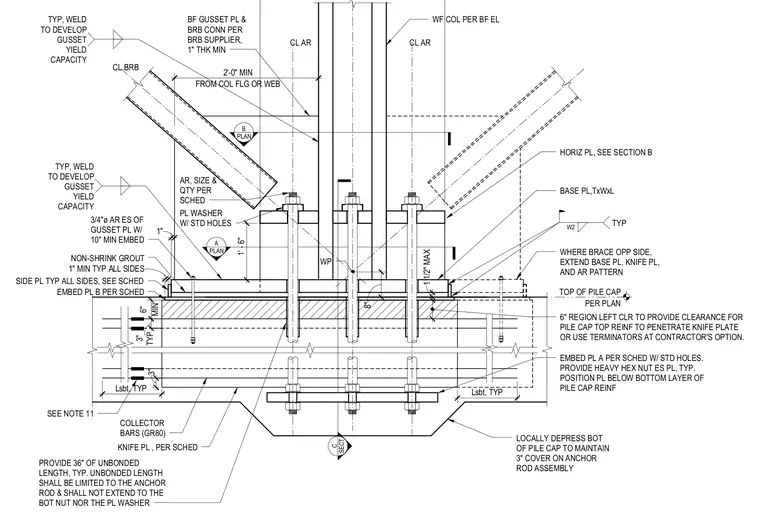

A buckling-restrained brace (BRB) connection frames into a wide-flange column and anchors to a concrete pile cap. The assembly features a base plate welded to develop the gusset yield capacity, with three-quarter-inch anchor rods extending into the concrete pile cap and secured with heavy hex nuts and plate washers. Side plates and embed plates are detailed per schedule, with non-shrink grout provided beneath the base plate. A locally depressed bottom of the pile cap maintains the required three-inch concrete cover over the anchor rod assembly, and collector bars (Grade 80) run through the concrete section. Where a brace occurs on the opposite side, the base plate, knife plate, and anchor rod pattern extend from the column flange or web.
