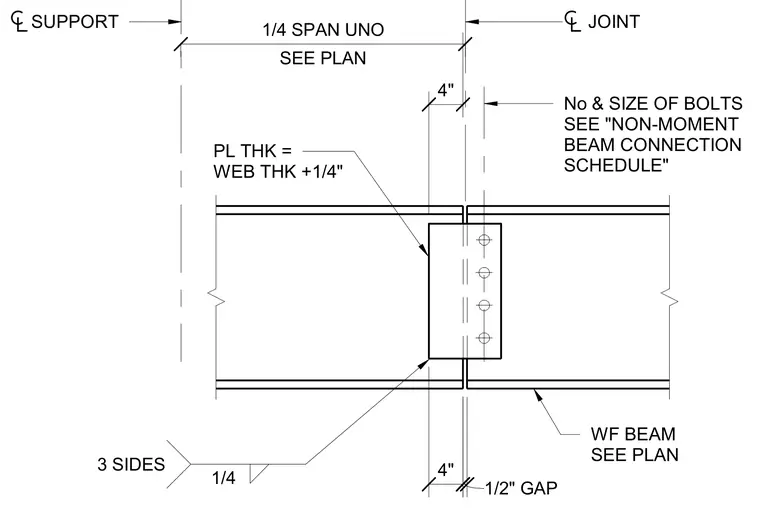

A wide-flange beam splice connection utilizes a connection plate welded to the web with specified fillet weld sizes. The plate thickness is sized according to the web thickness plus one-quarter inch. A one-half inch gap separates the beam ends at the joint centerline. Bolt number and size are coordinated with the non-moment beam connection schedule. Location along the span is referenced to the support centerline per plan.
JOINT No & SIZE OF BOLTS SEE "NON-MOMENT BEAM CONNECTION SCHEDULE" WF BEAM SEE PLAN SUPPORT PL THK = WEB THK +1/4" SEE PLAN 1/4 SPAN UNO 1/4 3 SIDES 1/2" GAP 4" 4"
