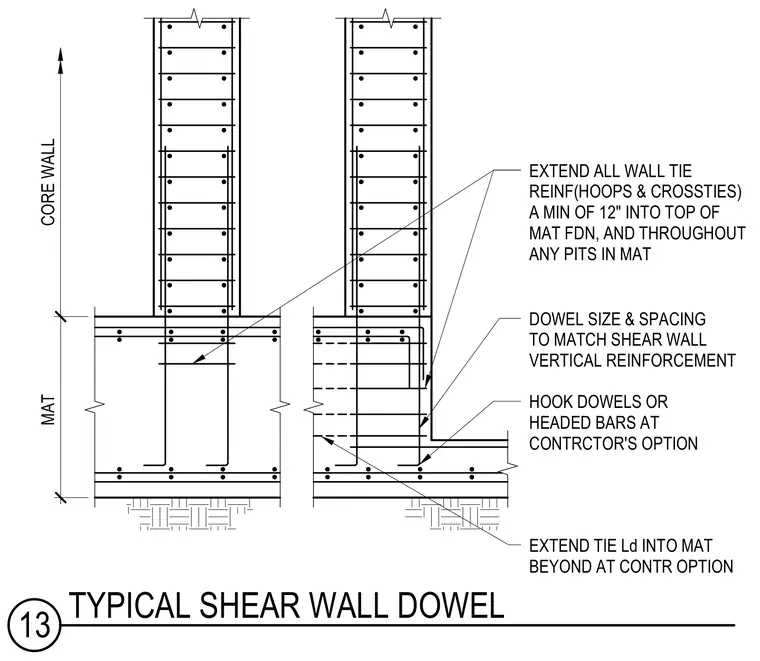

Vertical reinforcing dowels extend from the core wall down into the concrete mat foundation, with size and spacing matched to the shear wall vertical reinforcement. All wall tie reinforcement, including hoops and crossties, extends a minimum of 12 inches into the top of the mat foundation and throughout any pits in the mat. Hook dowels or headed bars are provided at the contractor's option, extending the tie development length into the mat beyond.
42" CORE WALL MAT EXTEND ALL WALL TIE REINF(HOOPS & CROSSTIES) A MIN OF 12" INTO TOP OF MAT FDN, AND THROUGHOUT ANY PITS IN MAT DOWEL SIZE & SPACING TO MATCH SHEAR WALL VERTICAL REINFORCEMENT HOOK DOWELS OR HEADED BARS AT CONTRCTOR'S OPTION EXTEND TIE Ld INTO MAT BEYOND AT CONTR OPTION 13 TYPICAL SHEAR WALL DOWEL
