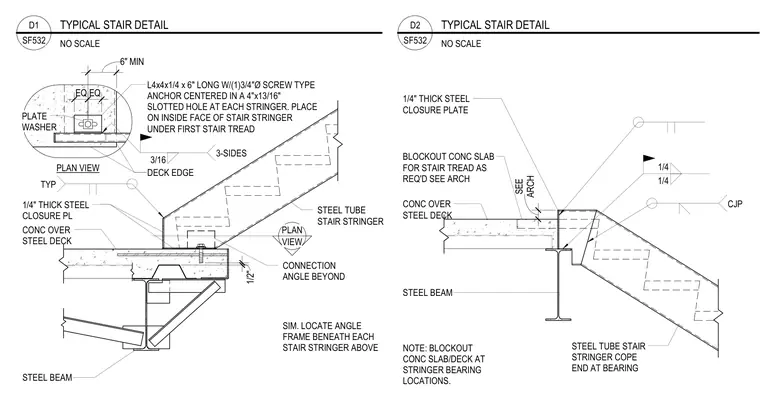

A steel tube stair stringer bears on a concrete-filled steel deck over a supporting steel beam. The left view provides a plan detail of an L4x4x1/4 by 6 inches long connection angle with a three-quarter-inch diameter screw-type anchor centered in a 4 by 13/16 inch slotted hole, placed on the inside face of the stringer under the first stair tread with a plate washer and 3/16 inch welds on three sides. A quarter-inch thick steel closure plate is provided at the deck edge. The right view details the coping at the stair stringer bearing with a complete joint penetration weld and a concrete slab blockout for the stair tread sized per architectural drawings.
STEEL TUBE STAIR STRINGER COPE END AT BEARING NOTE: BLOCKOUT CONC SLAB/DECK AT STRINGER BEARING LOCATIONS. STEEL BEAM CONC OVER STEEL DECK 1/4" THICK STEEL CLOSURE PLATE BLOCKOUT CONC SLAB FOR STAIR TREAD AS REQ'D SEE ARCH CJP 1/4 1/4 ARCH SEE CONC OVER STEEL DECK STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PL STEEL BEAM TYP PLAN VIEW L4x4x1/4 x 6" LONG W/(1)3/4"Ø SCREW TYPE ANCHOR CENTERED IN A 4"x13/16" SLOTTED HOLE AT EACH STRINGER. PLACE ON INSIDE FACE OF STAIR STRINGER UNDER FIRST STAIR TREAD 3/16 3-SIDES SIM. LOCATE ANGLE FRAME BENEATH EACH STAIR STRINGER ABOVE DECK EDGE EQ EQ VIEW PLAN 6" MIN PLATE WASHER CONNECTION ANGLE BEYOND 1/2" NO SCALE SF532 D1 TYPICAL STAIR DETAIL NO SCALE SF532 D2 TYPICAL STAIR DETAIL
