Structural · S-TJBDV

Tilt-Up Concrete Wall Pier Jamb at Openings

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Facades / Cladding Foundations / Footings Insulation Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

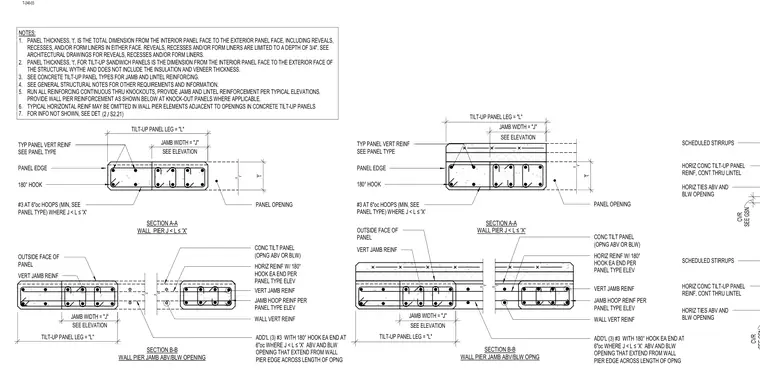

Concrete tilt-up wall pier jamb and lintel conditions above and below panel openings feature specific reinforcing configurations. Sections A-A and B-B detail the concrete panel edge, panel thickness, vertical jamb reinforcing, and horizontal reinforcing with 180-degree hooks at each end. Additional number 3 hoops are provided at six inches on center where the dimension meets specific criteria. Wall vertical reinforcing and scheduled stirrups are coordinated per panel type elevations and general notes.

PANEL OPENING 180° HOOK PANEL EDGE #3 AT 6"oc HOOPS (MIN, SEE PANEL TYPE) WHERE J < L ≤'X' TYP PANEL VERT REINF SEE PANEL TYPE SECTION A-A WALL PIER J < L ≤'X' TILT-UP PANEL LEG = "L" SEE ELEVATION JAMB WIDTH = "J" SECTION B-B WALL PIER JAMB ABV/BLW OPENING VERT JAMB REINF OUTSIDE FACE OF PANEL CONC TILT PANEL (OPNG ABV OR BLW) HORIZ REINF W/ 180° HOOK EA END PER PANEL TYPE ELEV WALL VERT REINF VERT JAMB REINF JAMB HOOP REINF PER PANEL TYPE ELEV NOTES: 1. PANEL THICKNESS, 't', IS THE TOTAL DIMENSION FROM THE INTERIOR PANEL FACE TO THE EXTERIOR PANEL FACE, INCLUDING REVEALS, RECESSES, AND/OR FORM LINERS IN EITHER FACE. REVEALS, RECESSES AND/OR FORM LINERS ARE LIMITED TO A DEPTH OF 3/4". SEE ARCHITECTURAL DRAWINGS FOR REVEALS, RECESSES AND/OR FORM LINERS. 2. PANEL THICKNESS, 't', FOR TILT-UP SANDWICH PANELS IS THE DIMENSION FROM THE INTERIOR PANEL FACE TO THE EXTERIOR FACE OF THE STRUCTURAL WYTHE AND DOES NOT INCLUDE THE INSULATION AND VENEER THICKNESS. 3. SEE CONCRETE TILT-UP PANEL TYPES FOR JAMB AND LINTEL REINFORCING. 4. SEE GENERAL STRUCTURAL NOTES FOR OTHER REQUIREMENTS AND INFORMATION. 5. RUN ALL REINFORCING CONTINUOUS THRU KNOCKOUTS, PROVIDE JAMB AND LINTEL REINFORCEMENT PER TYPICAL ELEVATIONS. PROVIDE WALL PIER REINFORCEMENT AS SHOWN BELOW AT KNOCK-OUT PANELS WHERE APPLICABLE. 6. TYPICAL HORIZONTAL REINF MAY BE OMITTED IN WALL PIER ELEMENTS ADJACENT TO OPENINGS IN CONCRETE TILT-UP PANELS 7. FOR INFO NOT SHOWN, SEE DET ADD'L (3) #3 WITH 180° HOOK EA END AT 6"oc WHERE J < L ≤'X' ABV AND BLW OPENING THAT EXTEND FROM WALL PIER EDGE ACROSS LENGTH OF OPNG / (2 S2.21) SEE ELEVATION JAMB WIDTH = "J" TILT-UP PANEL LEG = "L" TILT-UP PANEL LEG = "L" SEE ELEVATION JAMB WIDTH = "J" SECTION B-B WALL PIER JAMB ABV/BLW OPNG SECTION A-A WALL PIER J < L ≤'X' TILT-UP PANEL LEG = "L" SEE ELEVATION JAMB WIDTH = "J" ADD'L (3) #3 WITH 180° HOOK EA END AT 6"oc WHERE J < L ≤'X' ABV AND BLW OPENING THAT EXTEND FROM WALL PIER EDGE ACROSS LENGTH OF OPNG CONC TILT PANEL (OPNG ABV OR BLW) HORIZ REINF W/ 180° HOOK EA END PER PANEL TYPE ELEV WALL VERT REINF VERT JAMB REINF JAMB HOOP REINF PER PANEL TYPE ELEV PANEL OPENING 180° HOOK PANEL EDGE #3 AT 6"oc HOOPS (MIN, SEE PANEL TYPE) WHERE J < L ≤'X' TYP PANEL VERT REINF SEE PANEL TYPE VERT JAMB REINF OUTSIDE FACE OF PANEL SEE GSN CVR SCHEDULED STIRRUPS HORIZ TIES ABV AND BLW OPENING HORIZ CONC TILT-UP PANEL REINF, CONT THRU LINTEL SEE GSN CVR SCHEDULED STIRRUPS HORIZ CONC TILT-UP PANEL REINF, CONT THRU LINTEL HORIZ TIES ABV AND BLW OPENING 't' 't' T-240-03
