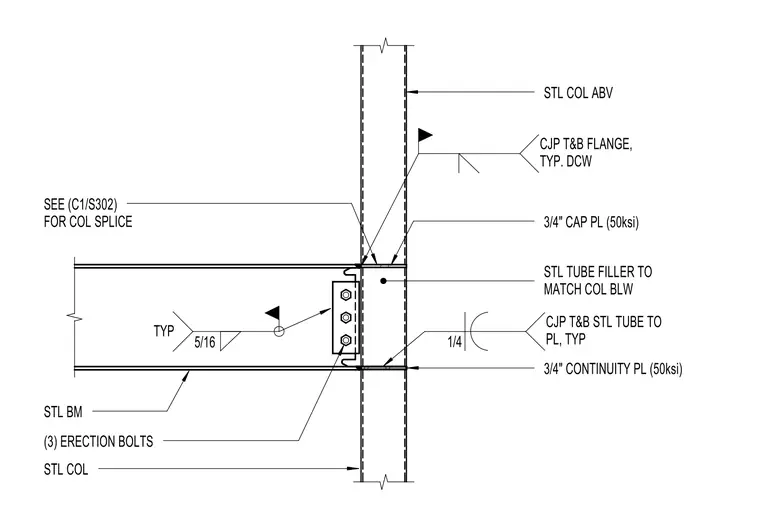

A steel beam frames into a steel hollow structural section column utilizing three erection bolts through a single-plate shear connection at the beam web with typical five-sixteenths inch fillet welds. A three-quarter-inch cap plate and a three-quarter-inch continuity plate fabricated from fifty ksi steel are welded to the column with complete joint penetration welds at the top and bottom flanges. A steel tube filler matching the column below is provided within the connection zone. The steel column above connects at the cap plate with reference made to drawing C1/S302 for the column splice.
STL BM (3) ERECTION BOLTS STL COL STL TUBE FILLER TO MATCH COL BLW 3/4" CAP PL (50ksi) 3/4" CONTINUITY PL (50ksi) TYP 5/16 CJP T&B FLANGE, TYP. DCW CJP T&B STL TUBE TO PL, TYP 1/4 STL COL ABV SEE (C1/S302) FOR COL SPLICE
