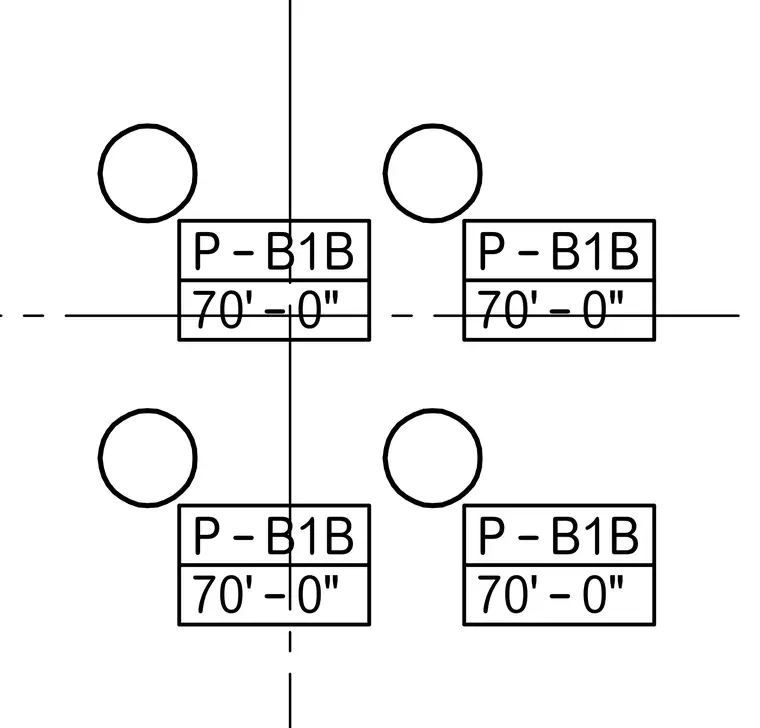

Four anchor bolts are arranged symmetrically around a column centerline with a specified elevation of seventy feet-zero inches. Each location is marked with callouts referencing assembly P-B1B.
