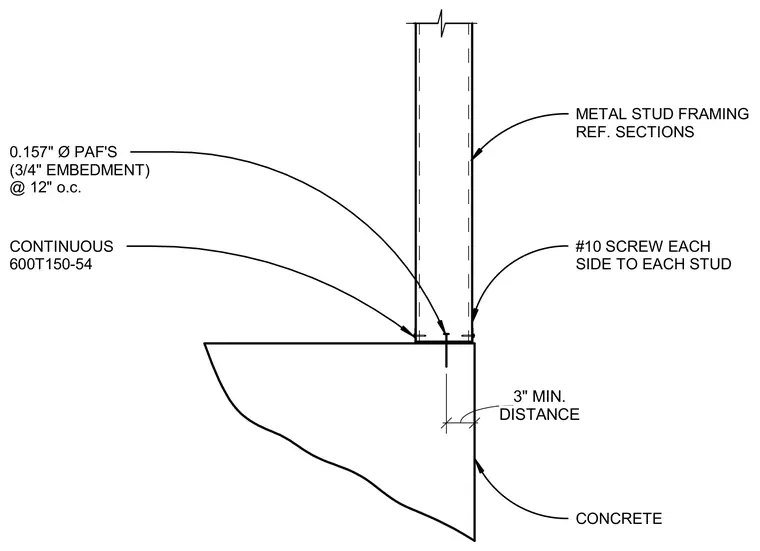

A continuous 600T150-54 cold-formed steel track bears directly on a concrete substrate with a three-inch minimum edge distance. The track is secured to the concrete using 0.157-inch diameter powder-actuated fasteners with three-quarter-inch embedment spaced at twelve inches on center. Metal stud framing is positioned within the track and connected using number ten screws on each side of each stud.
DISTANCE 3" MIN. METAL STUD FRAMING REF. SECTIONS #10 SCREW EACH SIDE TO EACH STUD 0.157" Ø PAF'S (3/4" EMBEDMENT) @ 12" o.c. CONCRETE CONTINUOUS 600T150-54
