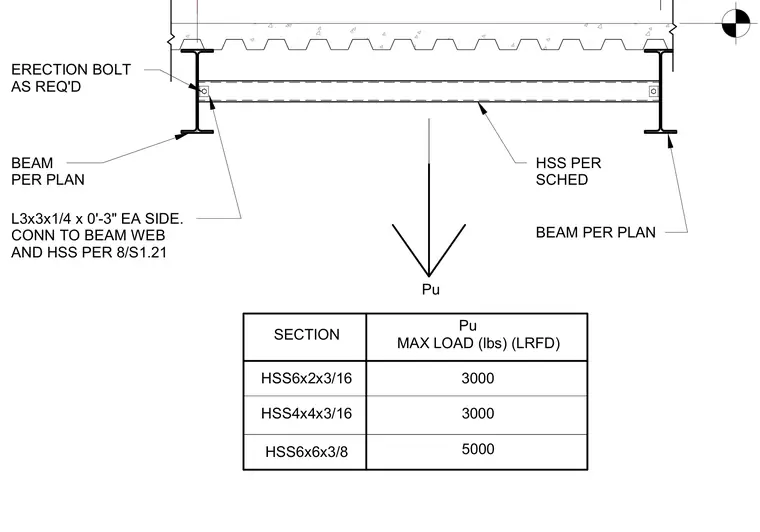

A hollow structural section member spans between structural steel beams sized per plan. The hollow structural section connects to the beam web using three-by-three by quarter-inch angles three inches long on each side, secured with erection bolts as required. Connections to the beam web and hollow structural section follow standard connection details. A load table provides maximum LRFD loads for various hollow structural section sizes including six-by-two, four-by-four, and six-by-six profiles.
HSS PER SCHED BEAM PER PLAN Pu ERECTION BOLT AS REQ'D L3x3x1/4 x 0'-3" EA SIDE. CONN TO BEAM WEB AND HSS PER 8/S1.21 BEAM PER PLAN SECTION HSS4x4x3/16 MAX LOAD (lbs) (LRFD) 3000 5000 Pu HSS6x6x3/8 HSS6x2x3/16 3000
