Typical BRBF Connection to Column at Foundation

Materials

Elements

Columns Floors / Slabs Foundations / Footings Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Bolted Connection Embed Plate

About this detail

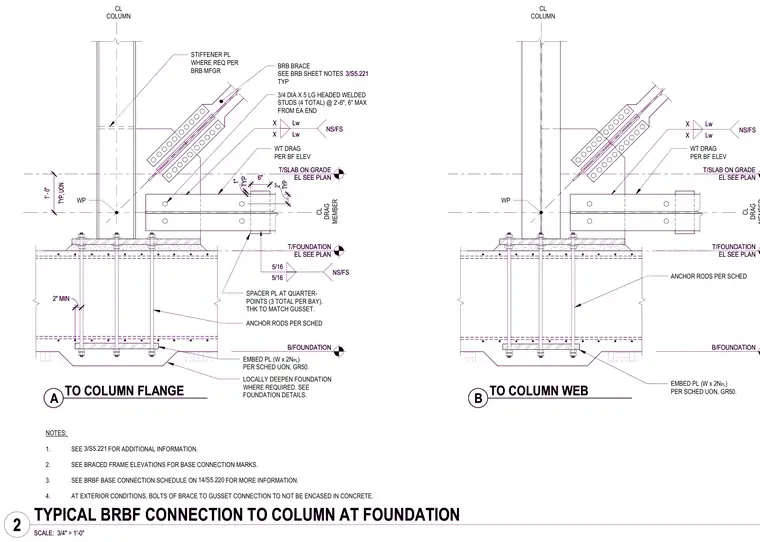

A buckling-restrained braced frame connection occurs at a foundation, shown for both column flange and column web conditions. The assembly features a brace connecting to a gusset plate, a drag member, and a base plate anchored to a concrete foundation with anchor rods and embedded plates. Welded headed studs are distributed along the embedment, and stiffener plates are provided as required by the manufacturer. Spacer plates match the thickness of the gusset at quarter-points, and fillet welds are specified on near side and far side as noted. At exterior conditions, the bolts of the brace to the gusset connection are specified not to be encased in concrete.

CL COLUMN EL SEE PLAN T/SLAB ON GRADE EL SEE PLAN T/FOUNDATION B/FOUNDATION CL DRAG MEMBER WP A TO COLUMN FLANGE NOTES: 1. SEE FOR ADDITIONAL INFORMATION. 2. SEE BRACED FRAME ELEVATIONS FOR BASE CONNECTION MARKS. 3. SEE BRBF BASE CONNECTION SCHEDULE ON FOR MORE INFORMATION. 4. AT EXTERIOR CONDITIONS, BOLTS OF BRACE TO GUSSET CONNECTION TO NOT BE ENCASED IN CONCRETE. BRB BRACE SEE BRB SHEET NOTES TYP ANCHOR RODS PER SCHED EMBED PL (W x 2N PL ) PER SCHED UON, GR50. 2" MIN STIFFENER PL WHERE REQ PER BRB MFGR CL COLUMN EL SEE PLAN T/SLAB ON GRADE EL SEE PLAN T/FOUNDATION B/FOUNDATION CL DRAG MEMBER WP B TO COLUMN WEB ANCHOR RODS PER SCHED EMBED PL (W x 2N PL ) PER SCHED UON, GR50. WT DRAG PER BF ELEV X Lw X Lw NS/FS 3/S5.221 14/S5.220 WT DRAG PER BF ELEV X Lw X Lw NS/FS SPACER PL AT QUARTER- POINTS (3 TOTAL PER BAY). THK TO MATCH GUSSET. TYP 1" 6" 5/16 5/16 NS/FS 3/S5.221 LOCALLY DEEPEN FOUNDATION WHERE REQUIRED. SEE FOUNDATION DETAILS. 3/4 DIA X 5 LG HEADED WELDED STUDS (4 TOTAL) @ 2'-6", 6" MAX FROM EA END TYP, UON 1' - 0" TYP 2" SCALE: 3/4" = 1'-0" 2 TYPICAL BRBF CONNECTION TO COLUMN AT FOUNDATION CL COLUMN EL SEE PLAN T/SLAB ON GRADE EL SEE PLAN T/FOUNDATION B/FOUNDATION CL DRAG MEMBER WP A TO COLUMN FLANGE NOTES: 1. SEE FOR ADDITIONAL INFORMATION. 2. SEE BRACED FRAME ELEVATIONS FOR BASE CONNECTION MARKS. 3. SEE BRBF BASE CONNECTION SCHEDULE ON FOR MORE INFORMATION. 4. AT EXTERIOR CONDITIONS, BOLTS OF BRACE TO GUSSET CONNECTION TO NOT BE ENCASED IN CONCRETE. BRB BRACE SEE BRB SHEET NOTES TYP ANCHOR RODS PER SCHED EMBED PL (W x 2N PL ) PER SCHED UON, GR50. 2" MIN STIFFENER PL WHERE REQ PER BRB MFGR CL COLUMN EL SEE PLAN T/SLAB ON GRADE EL SEE PLAN T/FOUNDATION B/FOUNDATION CL DRAG MEMBER WP B TO COLUMN WEB ANCHOR RODS PER SCHED EMBED PL (W x 2N PL ) PER SCHED UON, GR50. WT DRAG PER BF ELEV X Lw X Lw NS/FS 3/S5.221 14/S5.220 WT DRAG PER BF ELEV X Lw X Lw NS/FS SPACER PL AT QUARTER- POINTS (3 TOTAL PER BAY). THK TO MATCH GUSSET. TYP 1" 6" 5/16 5/16 NS/FS 3/S5.221 LOCALLY DEEPEN FOUNDATION WHERE REQUIRED. SEE FOUNDATION DETAILS. 3/4 DIA X 5 LG HEADED WELDED STUDS (4 TOTAL) @ 2'-6", 6" MAX FROM EA END TYP, UON 1' - 0" TYP 2" SCALE: 3/4" = 1'-0" 2 TYPICAL BRBF CONNECTION TO COLUMN AT FOUNDATION
