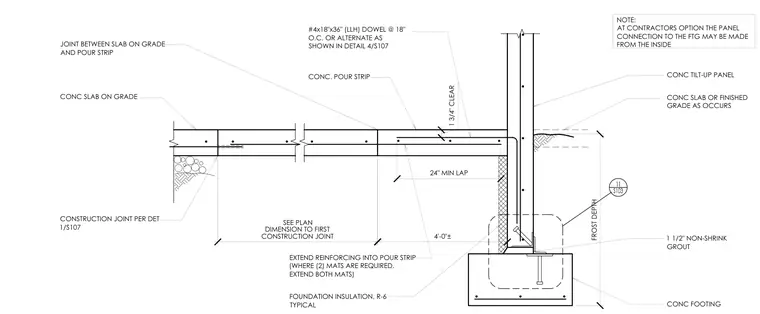

A concrete tilt-up wall panel bears onto a concrete footing with one and one-half inches of non-shrink grout and an embedded base connection plate. A concrete pour strip interfaces between the tilt-up panel and the concrete slab on grade, featuring number four by eighteen-inch by thirty-six-inch dowels at eighteen inches on center. Reinforcing mats extend from the slab into the pour strip with a twenty-four-inch minimum lap and one and three-quarter inches of clear cover. Foundation insulation rated at R-six is placed vertically against the footing and wall assembly. A construction joint is detailed between the slab on grade and the pour strip, with dimensions to the first construction joint as specified per plan.
JOINT BETWEEN SLAB ON GRADE AND POUR STRIP CONC SLAB ON GRADE CONSTRUCTION JOINT PER DET 1/S107 SEE PLAN DIMENSION TO FIRST CONSTRUCTION JOINT 1 3/4" CLEAR EXTEND REINFORCING INTO POUR STRIP (WHERE (2) MATS ARE REQUIRED, EXTEND BOTH MATS) CONC SLAB OR FINISHED GRADE AS OCCURS CONC. POUR STRIP #4x18"x36" (LLH) DOWEL @ 18" O.C. OR ALTERNATE AS SHOWN IN DETAIL 4/S107 NOTE: AT CONTRACTORS OPTION THE PANEL CONNECTION TO THE FTG MAY BE MADE FROM THE INSIDE CONC TILT-UP PANEL CONC FOOTING FROST DEPTH 1 1/2" NON-SHRINK GROUT 24" MIN LAP FOUNDATION INSULATION, R-6 TYPICAL
