Structural · S-TH5XK

Brace Connection Detail

Materials

Glass / Glazing

Elements

Roofs Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

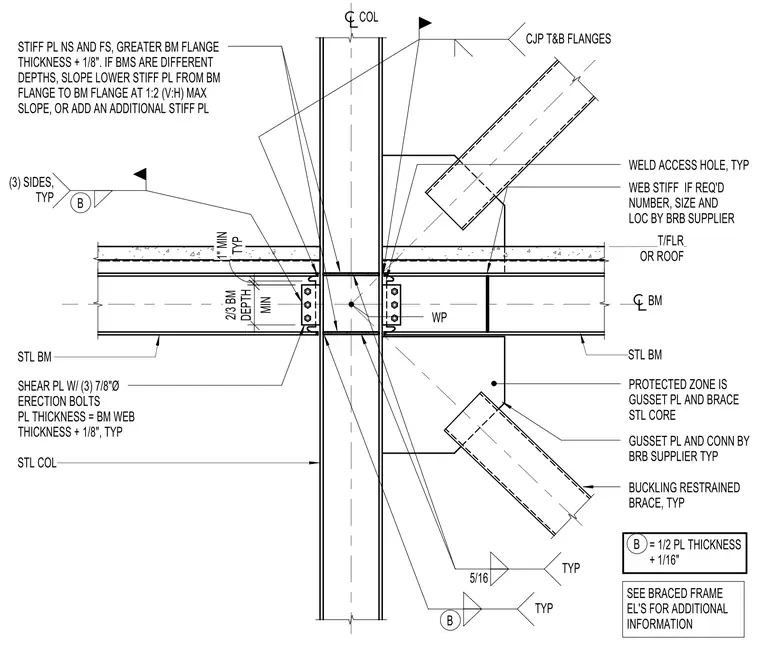

A steel column connects to continuous steel beams framed on each side with shear plates containing three seven-eighths-inch diameter erection bolts. Gusset plates for the buckling restrained braces weld to the column and beam flanges, with the protected zone encompassing the gusset plate and brace steel core. Stiffener plates are provided on the near side and far side, with a thickness equal to the greater beam flange thickness plus one-eighth inch. Complete joint penetration welds secure the top and bottom flanges, and web stiffeners are added as required by the brace supplier.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
