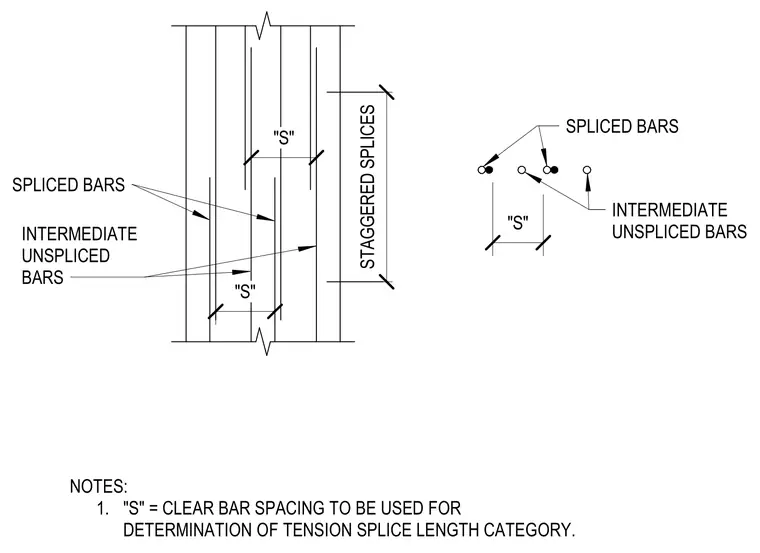

Clear bar spacing, denoted as S, determines the tension splice length category for reinforcing bars. Elevation and plan views of staggered splices identify the relationship between spliced bars and intermediate unspliced bars. The clear spacing S is measured between the bars to ensure proper development and structural performance of the lap splice.
Text on the drawing
NOTES: 1. "S" = CLEAR BAR SPACING TO BE USED FOR DETERMINATION OF TENSION SPLICE LENGTH CATEGORY. ELEVATION "S" STAGGERED SPLICES SPLICED BARS INTERMEDIATE UNSPLICED BARS "S" PLAN INTERMEDIATE UNSPLICED BARS "S" SPLICED BARS
