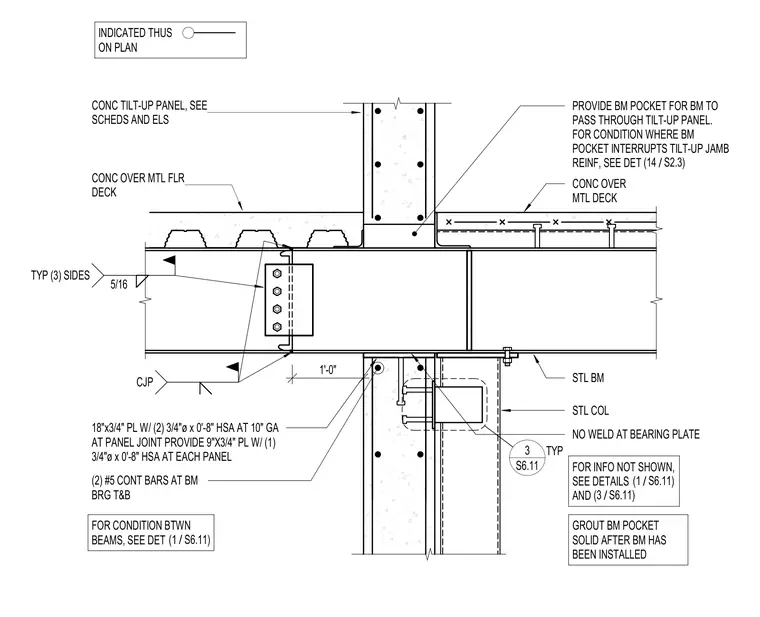

A structural steel beam frames into a concrete tilt-up wall panel featuring a beam pocket and bearing plate. The steel beam passes through a designed beam pocket in the concrete tilt-up panel, which is grouted solid after the beam has been installed. Two number five continuous reinforcing bars are provided at the beam bearing top and bottom. An 18-inch by 3/4-inch plate with two 3/4-inch diameter by 8-inch heavy stud anchors at 10-inch gauge is provided at the panel joint, along with a 9-inch by 3/4-inch plate with one 3/4-inch diameter by 8-inch heavy stud anchor at each panel with complete joint penetration welds. The bearing plate connection is left unwelded to the girder as indicated by the note. A concrete slab over metal floor deck bears adjacent to the framing.
(2) #5 CONT BARS AT BM BRG T&B GROUT BM POCKET SOLID AFTER BM HAS BEEN INSTALLED CONC TILT-UP PANEL, SEE SCHEDS AND ELS CONC OVER MTL FLR DECK FOR CONDITION BTWN BEAMS, SEE DET / (1 S6.11) S6.11 3 TYP STL COL STL BM CONC OVER MTL DECK FOR INFO NOT SHOWN, SEE DETAILS AND / (1 S6.11) / (3 S6.11) 18"x3/4" PL W/ (2) 3/4"ø x 0'-8" HSA AT 10" GA AT PANEL JOINT PROVIDE 9"X3/4" PL W/ (1) 3/4"ø x 0'-8" HSA AT EACH PANEL CJP PROVIDE BM POCKET FOR BM TO PASS THROUGH TILT-UP PANEL. FOR CONDITION WHERE BM POCKET INTERRUPTS TILT-UP JAMB REINF, SEE DET 1'-0" NO WELD AT BEARING PLATE INDICATED THUS ON PLAN 5/16 TYP (3) SIDES / (14 S2.3)
