Structural · S-TGYQ9

Deck Spanning Parallel to Beam

Materials

Steel Timber / Wood

Elements

Beams Decks

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

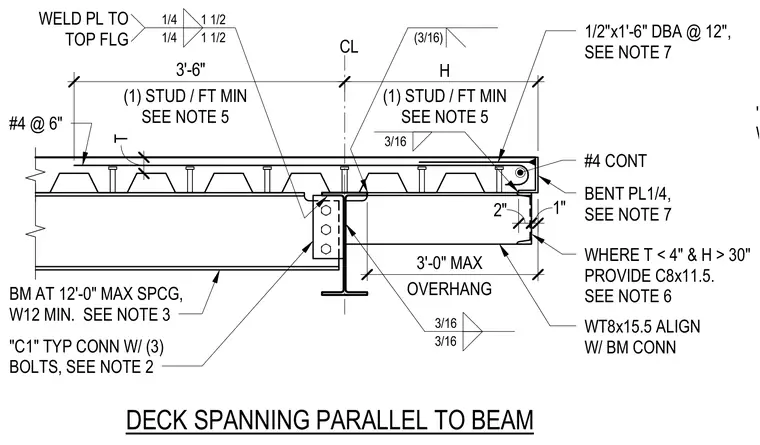

A metal deck spans parallel to a supporting steel beam, designated as a W12 minimum at twelve-foot maximum spacing. A WT8x15.5 section aligns with the beam connection, joined using three-sixteenth-inch fillet welds. Shear studs are provided at a minimum of one stud per foot. A continuous quarter-inch bent plate forms the edge with a half-inch by one-and-a-half-foot deformed bar anchor at twelve-inch spacing. Number four continuous reinforcing bars run along the slab edge, supplemented by number four bars at six-inch spacing. A C8x11.5 channel is provided where the slab thickness is less than four inches and the overhang height exceeds thirty inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
