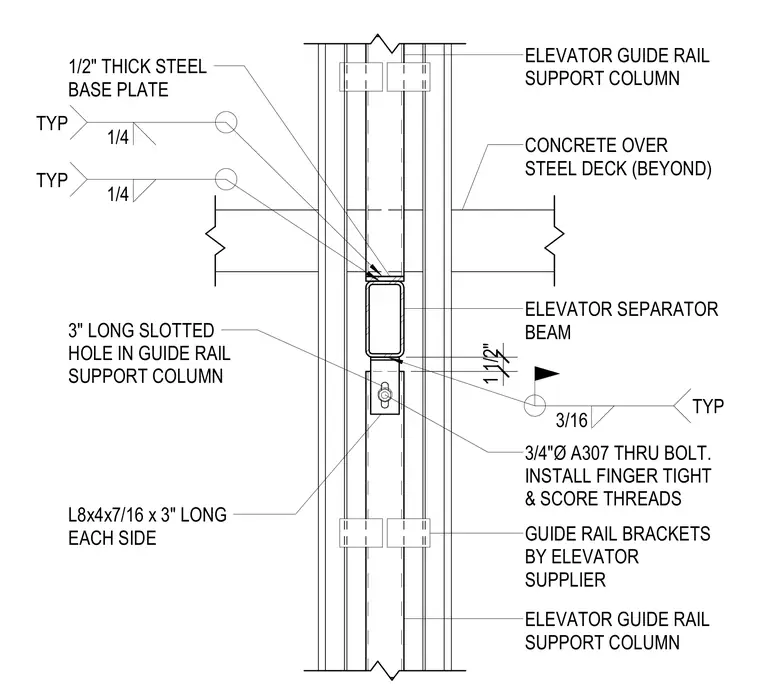

An elevator separator beam connects to vertical elevator guide rail support columns utilizing L8x4x7/16 angle brackets measuring three inches long on each side. A three-inch long slotted hole is fabricated into the guide rail support column to accommodate a three-quarter-inch diameter A307 through bolt, which is installed finger-tight with its threads scored. A one-half-inch thick steel base plate welds to the separator beam with one-quarter-inch fillet welds typical. Guide rail brackets provided by the elevator supplier anchor along the support columns adjacent to concrete over steel deck construction seen beyond.
ELEVATOR SEPARATOR BEAM GUIDE RAIL BRACKETS BY ELEVATOR SUPPLIER L8x4x7/16 x 3" LONG EACH SIDE 3" LONG SLOTTED HOLE IN GUIDE RAIL SUPPORT COLUMN 1/2" THICK STEEL BASE PLATE ELEVATOR GUIDE RAIL SUPPORT COLUMN 3/4"Ø A307 THRU BOLT. INSTALL FINGER TIGHT & SCORE THREADS CONCRETE OVER STEEL DECK (BEYOND) ELEVATOR GUIDE RAIL SUPPORT COLUMN 1 1/2" 1/4 TYP 3/16 TYP 1/4 TYP
