Steel beams with standard holes connect to a steel column using bolted shear plates and welded moment connections at the flanges. Continuity plates are welded across the column web as required for the moment connection, featuring a one-eighth-inch maximum kerf shear plate wider than the continuity plate. Five-sixteenth-inch fillet welds secure the plates typically, with one-half-inch radiused corners. Stiffener plates are detailed per sheet S52-00, and bolt sizes and quantities are specified elsewhere in the drawing set.

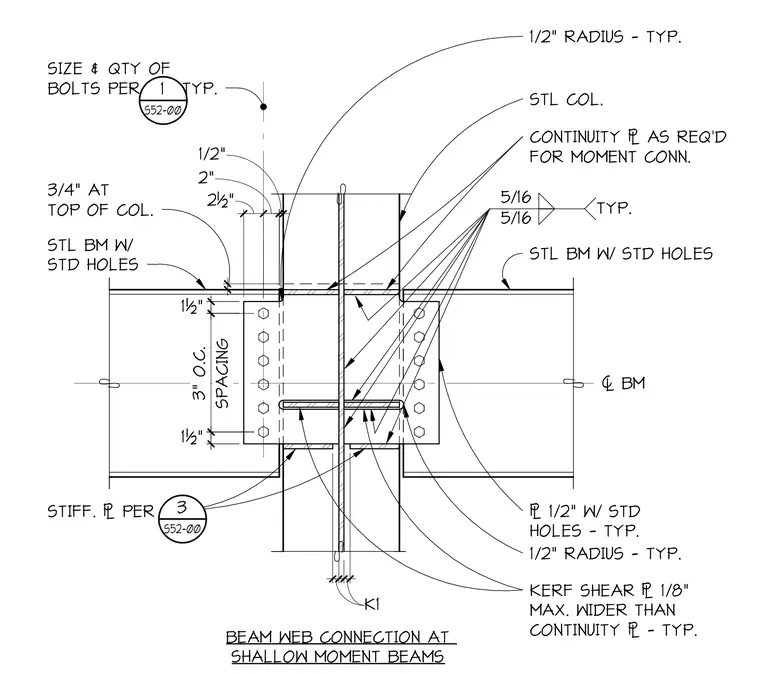

. BM 3/4 " 2½" 2" 1½" SPACING 3" O.C. 1½" 5/16 5/16 TYP. STIFF. $ PER STL BM W/ STD HOLES 3/4" AT TOP OF COL. STL BM W/ STD HOLES STL COL. SIZE & QTY OF BOLTS PER TYP. 1/2" K1 K1 1 S52-00 $ 1/2" W/ STD HOLES - TYP. 1/2" RADIUS - TYP. KERF SHEAR $ 1/8" MAX. WIDER THAN CONTINUITY $ - TYP. CONTINUITY $ AS REQ'D FOR MOMENT CONN. 1/2" RADIUS - TYP. 3 S52-00 BEAM WEB CONNECTION AT SHALLOW MOMENT BEAMS
