Structural · S-TGR46

Steel Bracing Connection at Metal Framing

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Gusset Plate Welded Connection Bolted Connection

About this detail

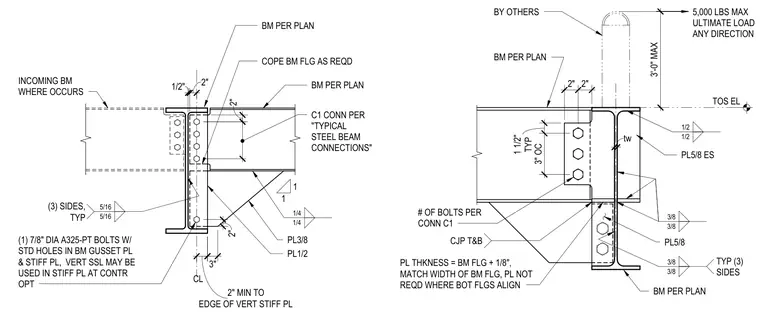

A structural steel bracing connection features a gusset plate welded to the supporting beam and column assembly with specified fillet and complete-joint-penetration welds. Incoming structural steel beams connect using standard C1 beam connections with seven-eighths inch diameter A325-PT bolts in standard holes through the beam, gusset plate, and vertical stiffener plates. Stiffener plates are detailed with plate thickness matching the beam flange plus one-eighth inch and matching the flange width where required. Vertical slotted holes may be used in the stiffener plate at the contractor's option, maintaining a two-inch minimum edge distance to the vertical stiffener plate. An optional member shown by others accommodates up to five thousand pounds maximum ultimate load in any direction with a three-foot maximum extension above the top of steel elevation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
