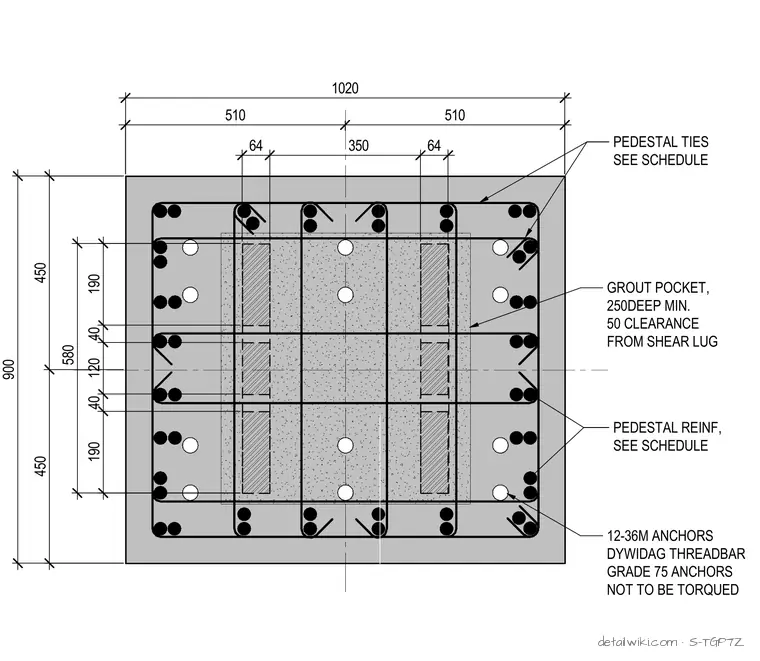

This structural detail shows a reinforced concrete pedestal measuring nine hundred by one thousand twenty millimeters with perimeter pedestal ties and vertical reinforcement detailed per schedule. The assembly incorporates twelve thirty-six-millimeter diameter Grade seventy Dywidag threadbar anchors installed with fifty millimeters of clearance from the shear lug. Grout pockets are detailed to a minimum depth of two hundred fifty millimeters. The anchors are specified not to be torqued.
900 1020 510 510 450 450 PEDESTAL TIES SEE SCHEDULE PEDESTAL REINF, SEE SCHEDULE 190 40 120 40 190 580 64 350 64 GROUT POCKET, 250DEEP MIN. 50 CLEARANCE FROM SHEAR LUG 12-36M ANCHORS DYWIDAG THREADBAR GRADE 75 ANCHORS NOT TO BE TORQUED
