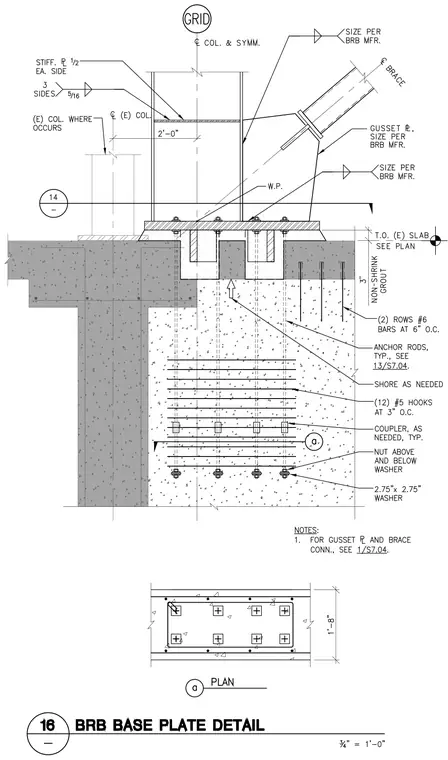

A buckling-restrained brace connects to a base plate sitting atop a concrete pier with a three-inch non-shrink grout layer. The assembly features a gusset plate sized per the manufacturer, anchored by anchor rods with nuts above and below washers, and reinforced with a system of hooks, couplers, and anchor rod configurations. Horizontal stiffener plates measuring one-half inch thick are welded to the column on each side with five-sixteenth-inch fillet welds on three sides. An existing column occurs adjacent to the primary column centerline, while reinforcing bars run continuously through the concrete pier and slab.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
