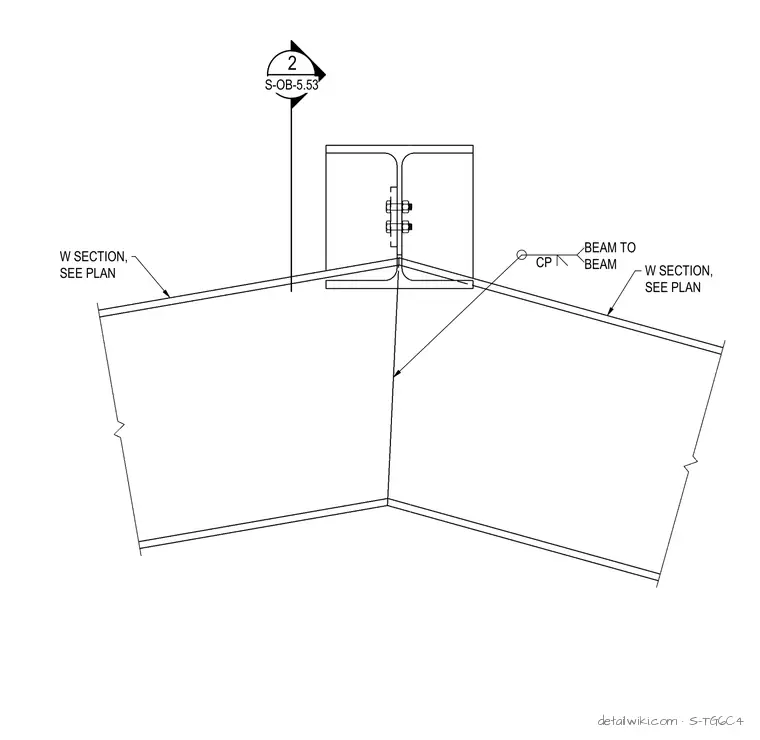

The assembly illustrates a structural steel connection where a wide flange beam connects to a cranked wide flange beam. The connection utilizes bolts through a plate and complete joint penetration (CP) welds as indicated by the callouts. The members are designated as W sections per the structural plans.
Text on the drawing
CP BEAM TO BEAM W SECTION, SEE PLAN W SECTION, SEE PLAN 2 S-OB-5.53
