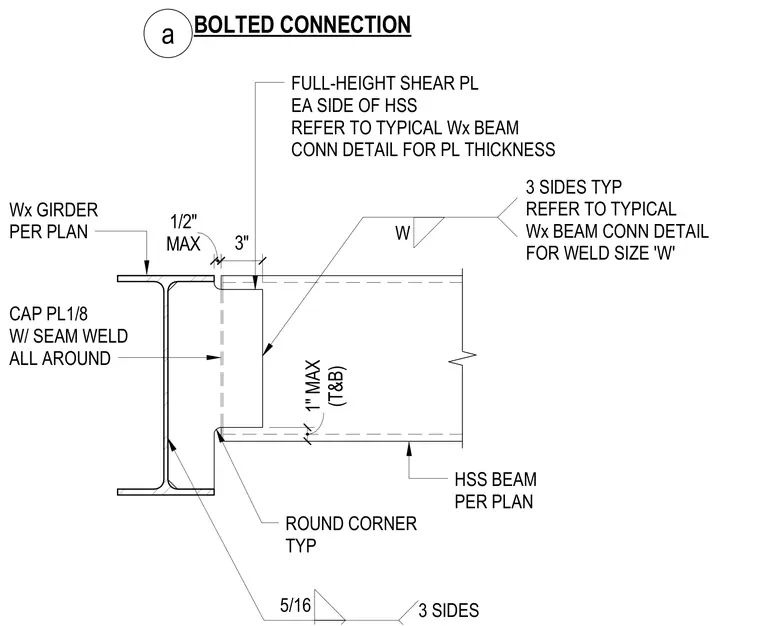

A hollow structural section beam connects to a wide-flange girder using full-height shear plates welded to each side of the hollow structural section. A cap plate with a seam weld all around is provided at the end of the hollow structural section. Fillet welds secure the connection with specific sizes and dimensions referenced per plan.
BOLTED CONNECTION a HSS BEAM PER PLAN W Wx GIRDER PER PLAN MAX 1/2" 3" CAP PL1/8 W/ SEAM WELD ALL AROUND FULL-HEIGHT SHEAR PL EA SIDE OF HSS REFER TO TYPICAL Wx BEAM CONN DETAIL FOR PL THICKNESS ROUND CORNER TYP (T&B) 1" MAX 5/16 3 SIDES 3 SIDES TYP REFER TO TYPICAL Wx BEAM CONN DETAIL FOR WELD SIZE 'W'
