Structural · S-TFX6D

Concrete Wall Panel at Continuous Footing Detail

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

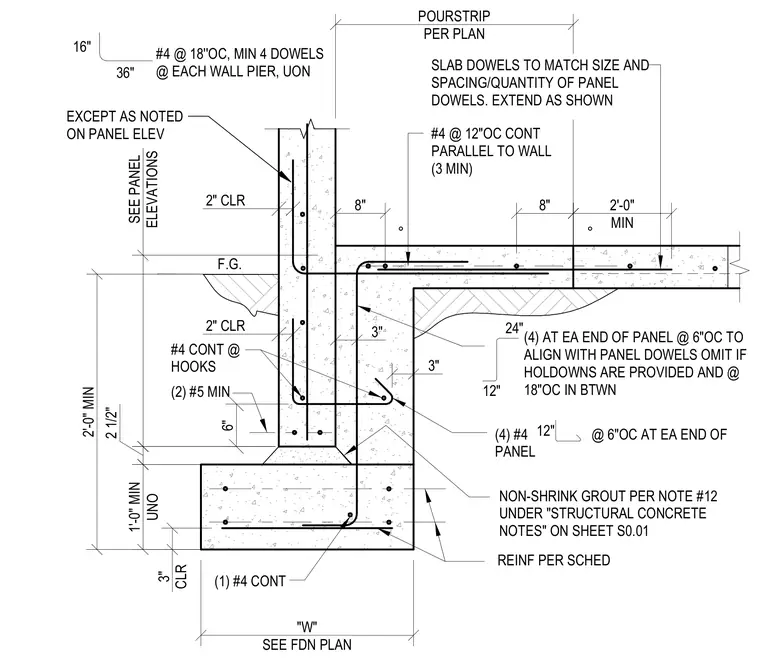

A precast or tilt-up concrete wall panel bears on a continuous concrete foundation with a slab-on-grade pour strip. The concrete footing is reinforced with one continuous number four bar and sizing per the foundation schedule, supporting an eight-inch thick wall resting on a layer of non-shrink grout. Vertical wall dowels consisting of four number four bars at six inches on center are placed at each end of the panel and eighteen inches on center in between to match the panel dowels. Slab dowels extend from the adjacent slab-on-grade to match the size, spacing, and quantity of the panel dowels. Additional horizontal and vertical reinforcement includes continuous number four bars at twelve inches on center parallel to the wall, two minimum number five bars, and continuous number four bars at hooks.
