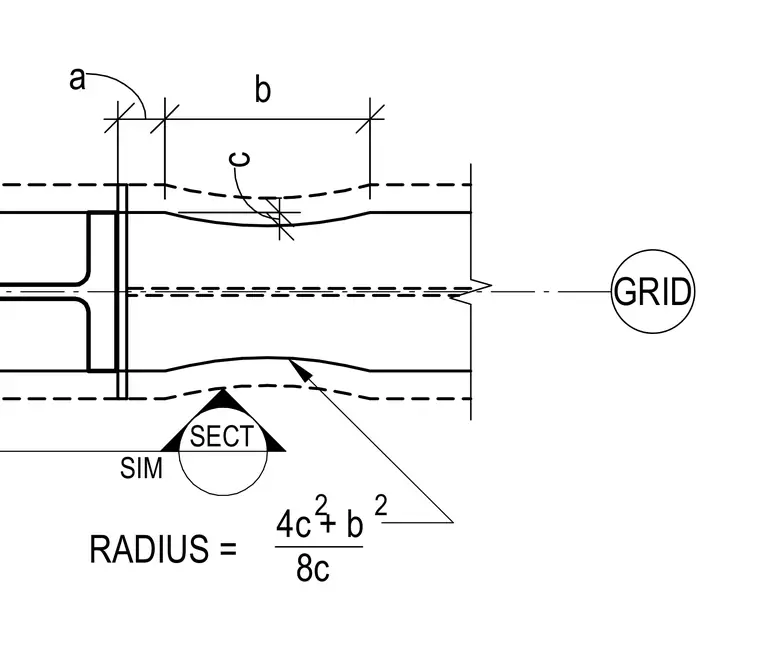

Geometric parameters and radius formula for a shaped structural member profile relative to a grid line. Dimension lines indicate segment lengths 'a' and 'b' along with camber or offset 'c'. An algebraic formula calculates the required radius based on these measured dimensions. A section reference marker is included and the detail is noted as symmetrical.
