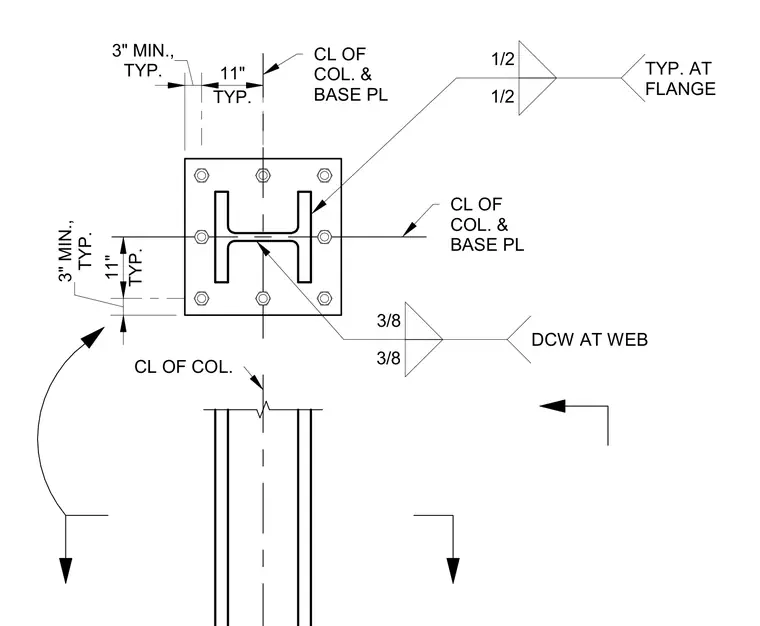

A steel column is welded to a base plate with a half-inch weld typically at the flange and a three-eighths weld at the web, aligned with the column and base plate centerlines. The base plate features specified offsets including three inches minimum typically and eleven inches typically from centerlines to the plate edges.
CL OF COL. CL OF COL. & BASE PL CL OF COL. & BASE PL TYP. 3" MIN., TYP. 11" TYP. 3" MIN., TYP. 11" 1/2 1/2 TYP. AT FLANGE 3/8 3/8 DCW AT WEB
