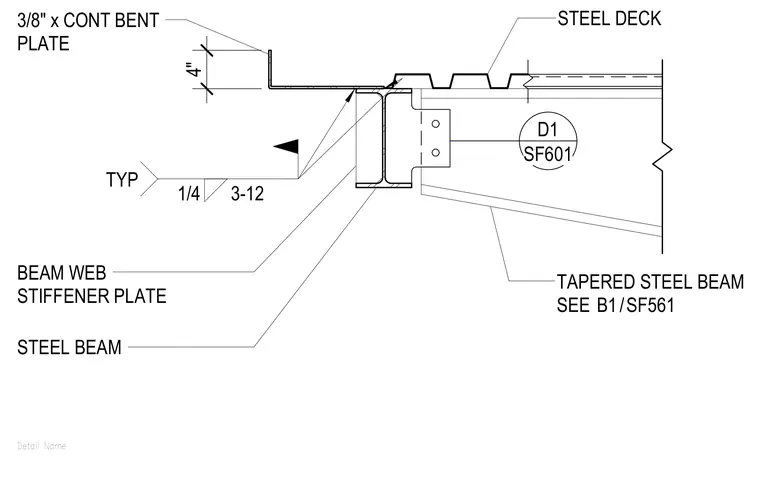

A tapered steel beam connects at the roof deck edge with a three-eighths-inch continuous bent plate welded to the top flange. A beam web stiffener plate is welded to the supporting steel beam with a one-quarter-inch fillet weld at three to twelve inches typical spacing. Steel decking bears over the beam flange adjacent to the bent plate edge. The tapered steel beam continues inward and is referenced to detail B1 on sheet SF561.
3/8" x CONT BENT PLATE TAPERED STEEL BEAM SEE 1/4 3-12 TYP Detail Name BEAM WEB STIFFENER PLATE STEEL BEAM /SF561 B1 SF601 D1 STEEL DECK 4"
