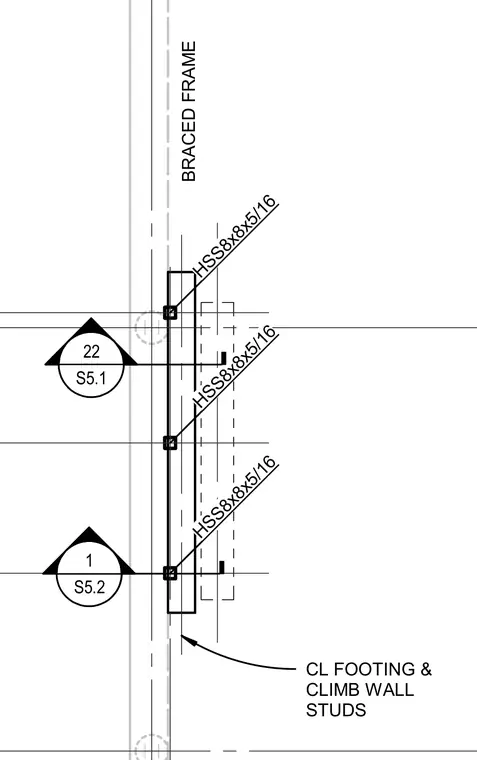

A braced frame structural connection uses HSS8x8x5/16 hollow structural sections anchored at centerline footings and climb wall studs. The intersection coordinates intersecting diagonal and vertical structural steel members with aligned reference grid lines.
BRACED FRAME HSS8x8x5/16 HSS8x8x5/16 HSS8x8x5/16 22 S5.1 _____ CL FOOTING & CLIMB WALL STUDS 1 S5.2 _____
